1-967629-2 | AMP

Plug, unequipped, 18 pole, straight, 3 rows, 1-967629-2

Order No.: 36P3072
EAN: 4099889900705
MPN:
1-967629-2

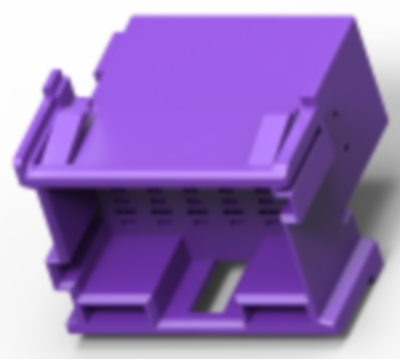

1-967629-2 AMP Automotive Power Connectors Image 1

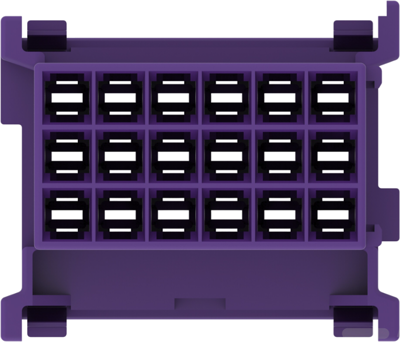

1-967629-2 AMP Automotive Power Connectors Image 2

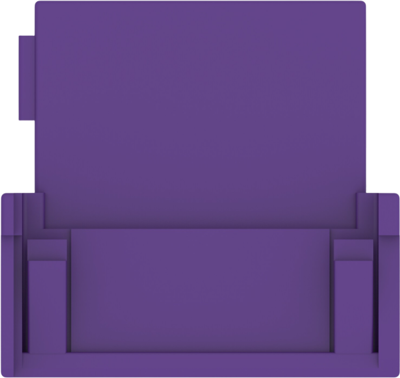

1-967629-2 AMP Automotive Power Connectors Image 3

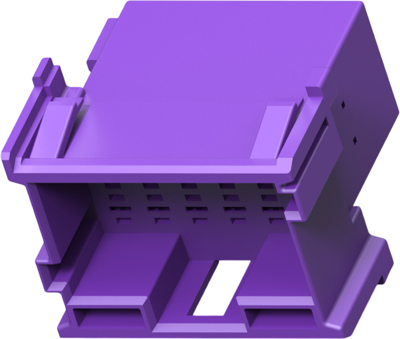

1-967629-2 AMP Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
2.3086 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
11.54 € *
Price list
Quantity
Price per unit*
5 pcs.
2.3086 €
10 pcs.
2.1420 €
25 pcs.
1.9873 €
50 pcs.
1.8088 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug housing, 1-967629-2, AMP

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 18, Number of rows: 3, Nominal voltage architecture: 12 V, 24 V, Operating voltage: 28 VDC, Cable exit angle: 180°, Body material: PA GF, Primary product color: other, Mating tab width: 2.8 mm, Mounting feature: without, Polarized, Centerline (pitch): 5 mm, Height: 30.6 mm, Length: 37.5 mm, Width: 35.45 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Serviceable: no, Connector position assurance capable: no

Technical specifications
Filter Property Value
Grid 5 mm
Contact type plug
Version straight
Rated voltage 28 V
Type of locking Yes
Additional parts unequipped
Number of rows 3
Pin number 18 pole
Connection crimp connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85389011
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
