1-967626-6 | AMP

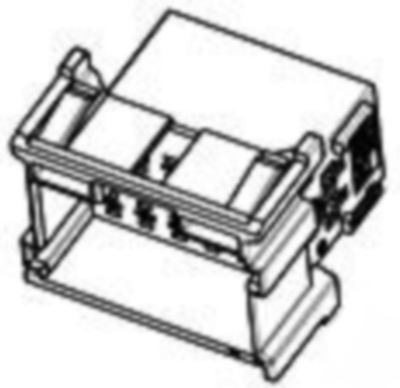

Plug, unequipped, 9 pole, straight, 3 rows, green, 1-967626-6
Order No.: 36P3168
EAN: 4099889901467
MPN:
1-967626-6
Unit Price (€ / pc.)
2.0825 € *
Standard delivery time from the manufacturer is: 10 Weeks
Plug housing, 1-967626-6, AMP
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 9, Number of rows: 3, Operating voltage: 28 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PA GF, Primary product color: green, Connector code: A, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Product height: 30.6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Packaging method: bag, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 28 V | |
| Version | straight | |
| Number of rows | 3 | |
| Additional parts | unequipped | |
| Pin number | 9 pole | |
| Grid | 5 mm | |
| Type of locking | Yes | |
| Contact type | plug | |
| Colour | green | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
