1-967622-5 | AMP
Socket, unequipped, 12 pole, straight, 3 rows, gray, 1-967622-5
Order No.: 36P3109
EAN: 4099889901023
MPN:
1-967622-5
Unit Price (€ / pc.)
0.9758 € *
Available in 5 Days: 350 pcs. - if ordered today
Total Price:
4.88 € *
Price list
Quantity
Price per unit*
5 pcs.
0.9758 €
10 pcs.
0.9044 €
25 pcs.
0.8449 €
50 pcs.
0.7616 €
*incl. VAT plus shipping costs
Subject to prior sale

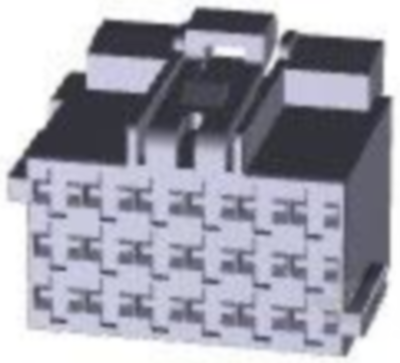

Socket housing, 1-967622-5, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 12, Number of rows: 3, Body material: PBT GF, Primary product color: gray, Connector code: A, Mating tab width: 2.8 mm, Terminal position assurance: yes, Polarized, Centerline (pitch): 5 mm, Height: 26.5 mm, Length: 21.2 mm, Width: 21.2 mm, Circuit application: signal, Packaging method: carton, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Contact type | socket | |
| Version | straight | |
| Rated voltage | 28 V | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 3 | |
| Colour | gray | |
| Pin number | 12 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
