1-967621-5 | AMP

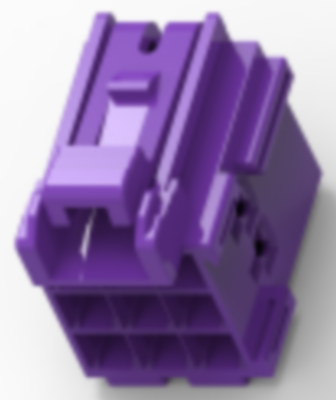

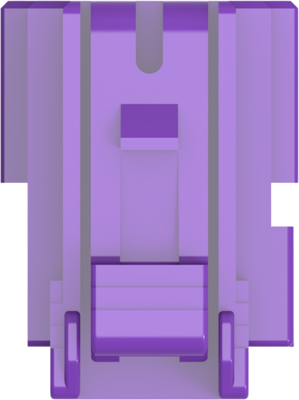

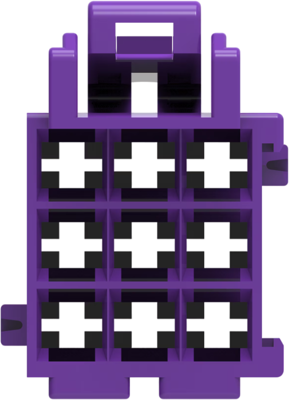

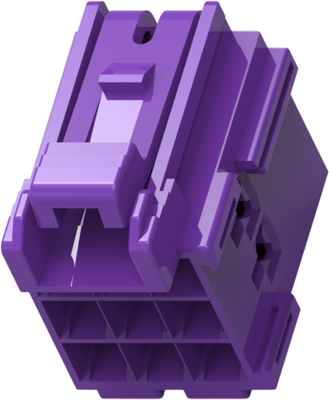

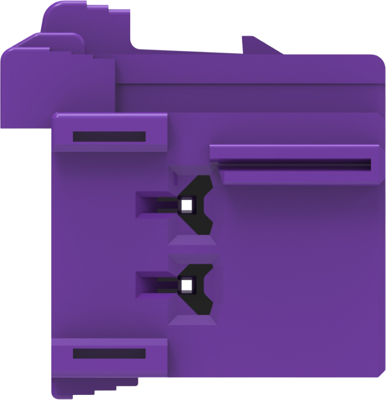

Socket, unequipped, 9 pole, straight, 3 rows, purple, 1-967621-5
Order No.: 36P3104
EAN: 4099889900972
MPN:
1-967621-5
Unit Price (€ / pc.)
0.5593 € *
Standard delivery time from the manufacturer is: 17 Weeks
Socket housing, 1-967621-5, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 9, Number of rows: 3, Body material: PBT GF, Primary product color: Purple, Connector code: B-C, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Row-to-row spacing: 5.5 mm, Circuit application: signal, Packaging method: carton, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Version | straight | |
| Colour | purple | |
| Type of locking | Yes | |
| Pin number | 9 pole | |
| Connection | crimp connection | |
| Grid | 5 mm | |
| Number of rows | 3 | |
| Contact type | socket | |
| Additional parts | unequipped |
Download
Logistics
| Customs tariff number | 85389091 |
| Country of origin | US |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
