1-967250-1 | AMP

Plug, 12 pole, angled, 2 rows, black, 1-967250-1

Order No.: 36P1216
EAN: 4099889894127
MPN:
1-967250-1
Series: MQS

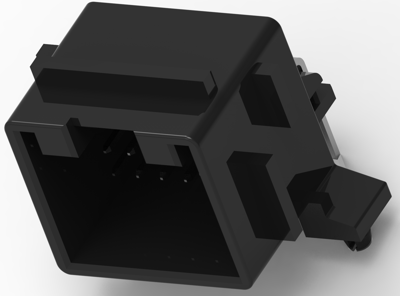

1-967250-1 AMP Automotive Power Connectors Image 1

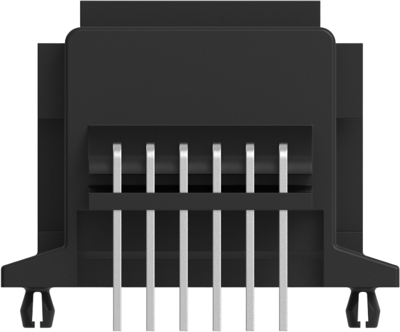

1-967250-1 AMP Automotive Power Connectors Image 2

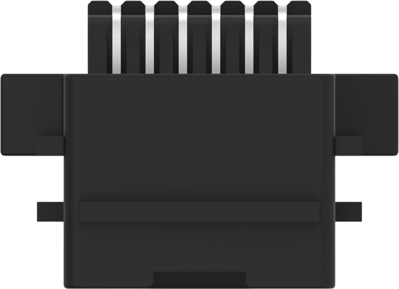

1-967250-1 AMP Automotive Power Connectors Image 3

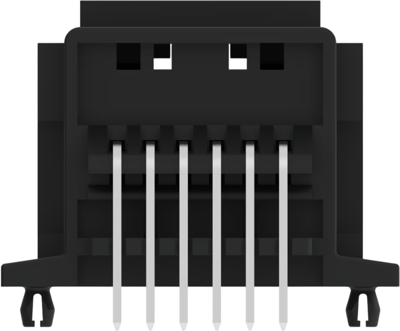

1-967250-1 AMP Automotive Power Connectors Image 4

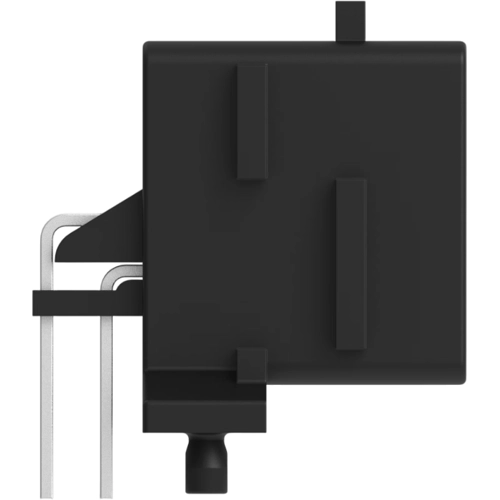

1-967250-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.8683 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
1.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.8683 €

Hybrid header, 1-967250-1, AMP

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 12, Number of positions: 12, PCB mount orientation: horizontal, Number of rows: 2, Primary product color: black, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 2.5 mm, PCB thickness (recommended): 0.8-1.6 mm, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging quantity: 270

Technical specifications
Version angled
Colour black
Type of locking Yes
Rated voltage 12 V
contact surface tin-plated
Pin number 12 pole
Connection solder connection
Grid 2.5 mm
Number of rows 2
Contact type plug
Logistics
Customs tariff number 85369001
Country of origin US
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
