1-965102-1 | AMP

Plug, unequipped, 4 pole, straight, 1 row, black, 1-965102-1

Order No.: 36P3035
EAN: 4099889900361
MPN:
1-965102-1
1-965102-1 AMP Automotive Power Connectors Image 1

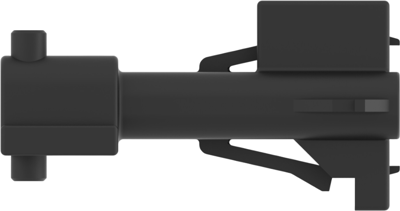

1-965102-1 AMP Automotive Power Connectors Image 2

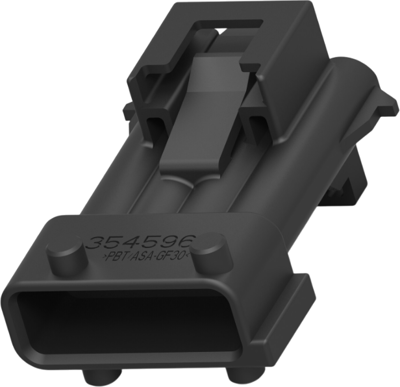

1-965102-1 AMP Automotive Power Connectors Image 3

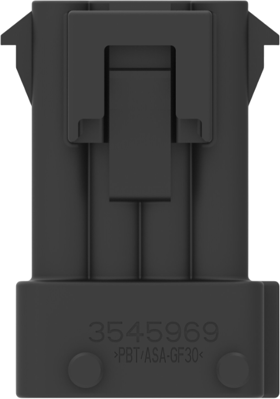

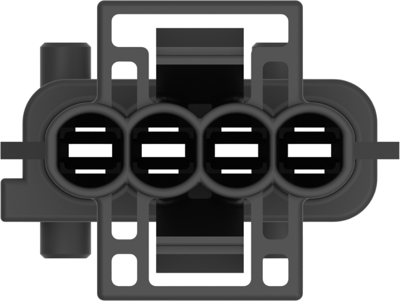

1-965102-1 AMP Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
0.6783 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
5,765.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
8500 pcs.
0.6783 €

Plug housing, 1-965102-1, AMP

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 4, Number of rows: 1, Body material: PBT GF, Primary product color: black, Connector code: A1, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Product height: 38 mm, Circuit application: signal, Packaging method: box, Serviceable: no, Connector position assurance capable: no

Technical specifications
Filter Property Value
Type of locking Yes
Additional parts unequipped
Number of rows 1
Rated voltage 12 V
Pin number 4 pole
Rated current 30 A
Contact type plug
Version straight
Grid 5 mm
Connection crimp connection
Colour black
Logistics
Property Value
Country of origin DE
Customs tariff number 85389011
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
