1-963448-2 | AMP

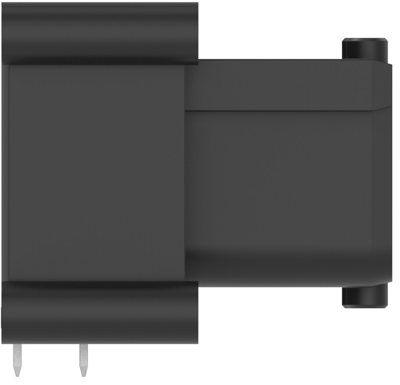

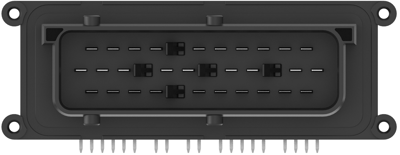

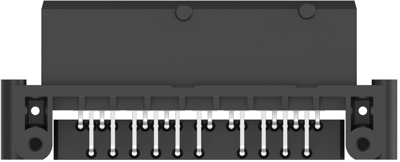

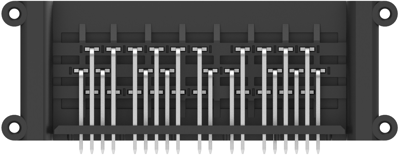

Plug, 29 pole, angled, 3 rows, black, 1-963448-2
Order No.: 36P3197
EAN: 4099889901702
MPN:
1-963448-2
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
8.211 € *
Standard delivery time from the manufacturer is: 36 Weeks
Hybrid header, 1-963448-2, AMP
Hybrid header: no, Connector system: wire-to-board, Sealable: no, Number of signal positions: 29, Number of positions: 29, PCB mount orientation: horizontal, Number of rows: 3, Primary product color: black, Mating tab width: 3 mm, Mating tab thickness: 0.8 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 5 mm, Width: 37.1 mm, Circuit application: signal, Packaging quantity: 72
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | plug | |
| Pin number | 29 pole | |
| Version | angled | |
| Grid | 5 mm | |
| Connection | solder connection | |
| Number of rows | 3 | |
| contact surface | tin-plated | |
| Type of locking | Yes | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
