1-963226-1 | AMP

Socket, unequipped, 42 pole, straight, 3 rows, black, 1-963226-1

Order No.: 36P2760
EAN: 4099889898224
MPN:
1-963226-1

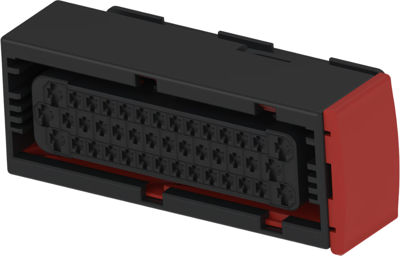

1-963226-1 AMP Automotive Power Connectors Image 1

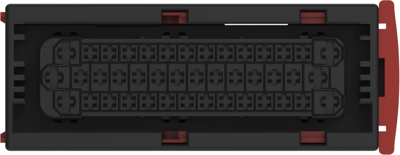

1-963226-1 AMP Automotive Power Connectors Image 2

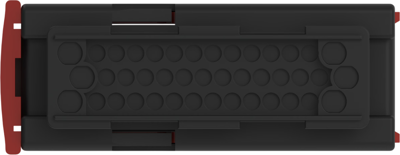

1-963226-1 AMP Automotive Power Connectors Image 3

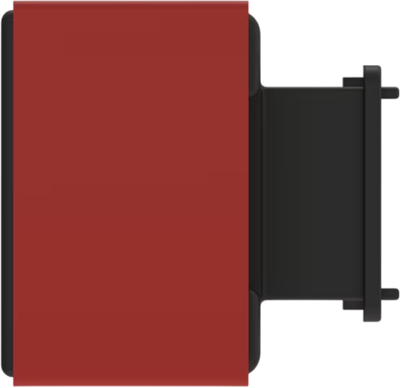

1-963226-1 AMP Automotive Power Connectors Image 4

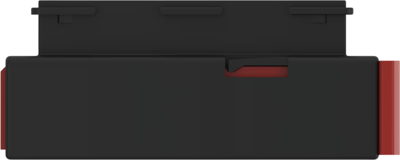

1-963226-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
7.3185 € *
Available in 5 Days: 213 pcs. - if ordered today
Total Price:
7.32 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3185 €
10 pcs.
6.7235 €
50 pcs.
6.0571 €
100 pcs.
5.4502 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 1-963226-1, AMP

Row-to-row spacing: 6 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Number of positions: 42, Number of rows: 3, Body material: PBT GF, Primary product color: black, Connector code: A1, Mating tab width: 2.8 mm, Terminal position assurance: no, Polarized, Centerline (pitch): 5 mm, Height: 33 mm, Length: 77.2 mm, Width: 30.5 mm, Circuit application: signal, Packaging method: carton, Serviceable: no, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 12 V
Pin number 42 pole
Connection crimp connection
Grid 5 mm
Number of rows 3
Rated current 22 A
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin US
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
