1-963211-1 | AMP

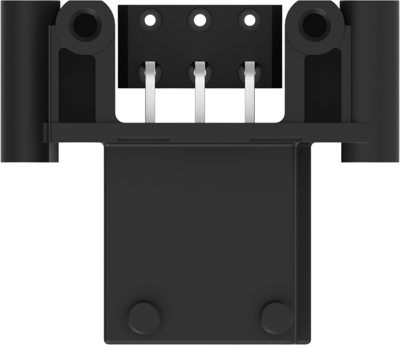

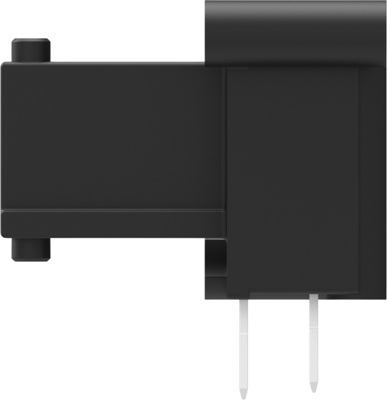

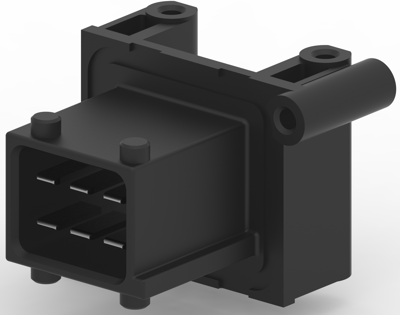

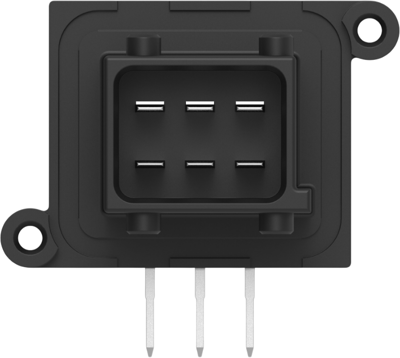

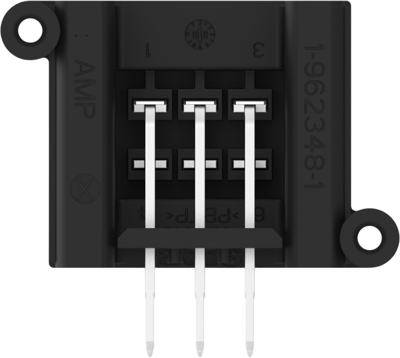

Plug, 6 pole, angled, 2 rows, black, 1-963211-1
Order No.: 36P3240
EAN: 4099889902013
MPN:
1-963211-1
Unit Price (€ / pc.)
2.7132 € *
Standard delivery time from the manufacturer is: 16 Weeks
PCB mount header, 1-963211-1, AMP
Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of sections: 1, Number of positions: 6, PCB mount orientation: horizontal, Number of rows: 2, Primary product color: black, Mating tab width: 3 mm, Mating tab thickness: 0.8 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 5 mm, Product length: 34.6 mm, Shielded: no, Circuit application: signal, Packaging quantity: 400
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 6 pole | |
| contact surface | tin-plated | |
| Connection | solder connection | |
| Colour | black | |
| Number of rows | 2 | |
| Grid | 5 mm | |
| Contact type | plug | |
| Type of locking | Yes | |
| Version | angled |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
