1-929180-1 | AMP

Plug, 6 pole, angled, 2 rows, black, 1-929180-1

Order No.: 36P3266
EAN: 4099889902167
MPN:
1-929180-1

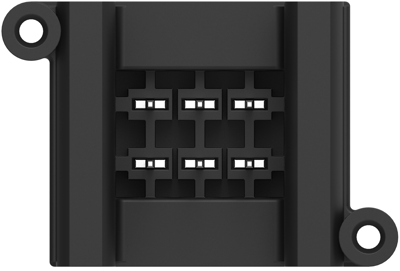

1-929180-1 AMP Automotive Power Connectors Image 1

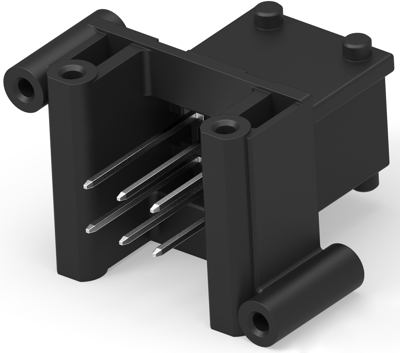

1-929180-1 AMP Automotive Power Connectors Image 2

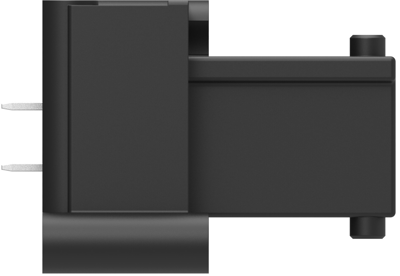

1-929180-1 AMP Automotive Power Connectors Image 3

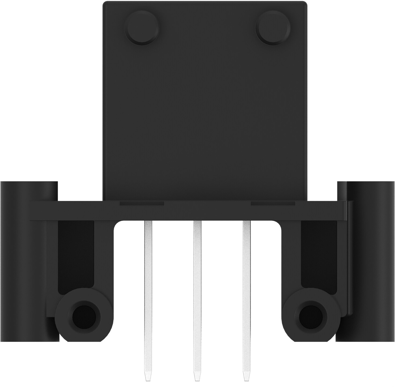

1-929180-1 AMP Automotive Power Connectors Image 4

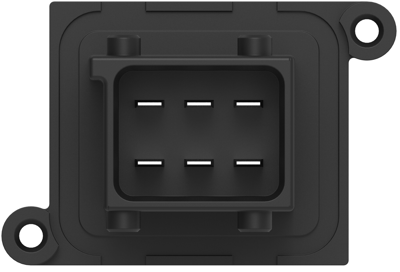

1-929180-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.9635 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
785.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
400 pcs.
1.9635 €

Hybrid header, 1-929180-1, AMP

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of positions: 6, PCB mount orientation: horizontal, Number of rows: 2, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, 240 V, Primary product color: black, Mating tab width: 3 mm, Mating tab thickness: 0.8 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 5 mm, Length: 34.6 mm, Operating temperature (max): 100 °C, 105 °C, 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, Operating temperature range: -55-105 °C, Circuit application: signal, Packaging type: tray

Technical specifications
Colour black
Type of locking Yes
contact surface tin-plated
Grid 5 mm
Pin number 6 pole
Version angled
Connection solder connection
Contact type plug
Rated voltage 240 V
Number of rows 2
Logistics
Country of origin CN
Customs tariff number 85369001
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
