1-776267-4 | AMP

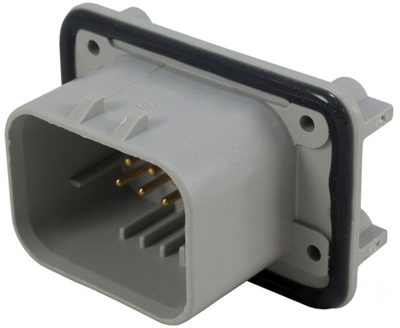

Plug, 14 pole, angled, 3 rows, gray, 1-776267-4

Order No.: 36P3711
EAN: 4099889902525
MPN:
1-776267-4
Series: AMPSEAL
1-776267-4 AMP Automotive Power Connectors
Image may differ
Unit Price (€ / pc.)
27.9412 € *
Available in 5 Days: 133 pcs. - if ordered today
Total Price:
27.94 € *
Price list
Quantity
Price per unit*
1 pcs.
27.9412 €
10 pcs.
25.7040 €
25 pcs.
23.1336 €
50 pcs.
20.8250 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB mount header, 1-776267-4, AMP

Hybrid header: no, Connector system: wire-to-board, wire-to-device, Sealable: yes, Connector & contact terminates to: printed circuit board, Number of signal positions: 14, Number of positions: 14, PCB mount orientation: horizontal, Number of rows: 3, Operating voltage: 250 VAC, Primary product color: gray, Mating tab width: 1.3 mm, Mating tab thickness: 1.3 mm, Mating pin diameter: 1.3 mm, Contact mating area plating material: gold (Au), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 4 mm, Product length: 48.8 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Shielded: no, Circuit application: power & signal, UL flammability rating: UL 94V-0

Technical specifications
Colour gray
Type of locking Yes
contact surface gold-plated
Grid 4 mm
Pin number 14 pole
Version angled
Connection solder connection
Contact type plug
Rated voltage 250 V
Number of rows 3
Logistics
Country of origin IN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
