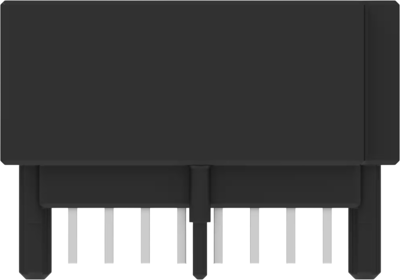

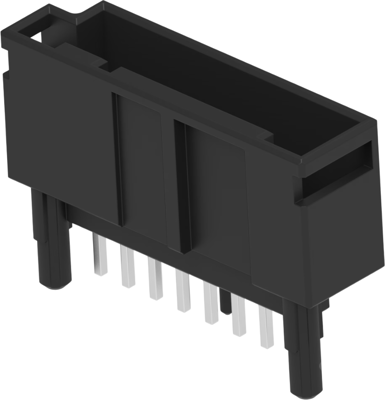

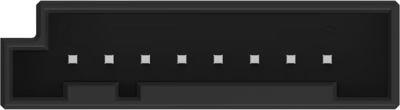

1-1743386-2 | AMP
Plug, 8 pole, straight, 1 row, black, 1-1743386-2
Unit Price (€ / pc.)
1.0710 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
1.07 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0710 €
10 pcs.
0.9996 €
25 pcs.
0.9282 €
50 pcs.
0.8449 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB mount header, 1-1743386-2, AMP
Hybrid Header: no, Connector system: wire-to-board, Sealable: no, Number of signal positions: 8, Number of positions: 8, PCB mount orientation: vertical, Number of rows: 1, Primary product color: black, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 2.54 mm, Product Length: 27.9 mm, Shielded: no, Circuit application: signal, Packaging quantity: 17, Interface number: 1743282
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | plug | |
| Pin number | 8 pole | |
| Version | straight | |
| Grid | 2.54 mm | |
| Connection | solder connection | |
| Number of rows | 1 | |
| contact surface | tin-plated | |
| Type of locking | Yes | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
