1-1718230-1 | AMP

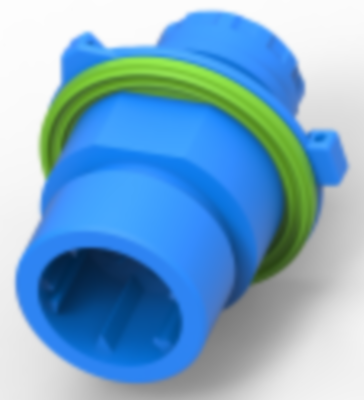

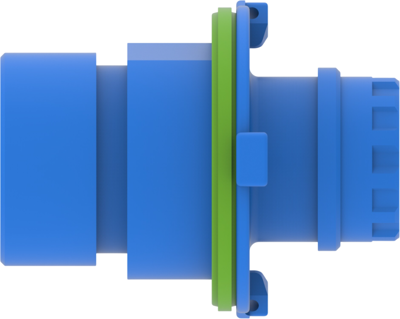

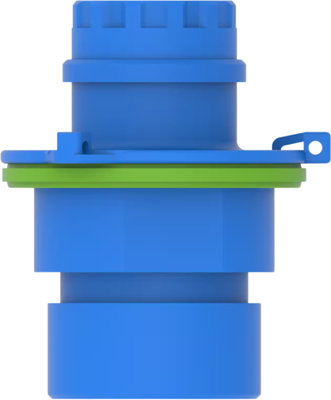

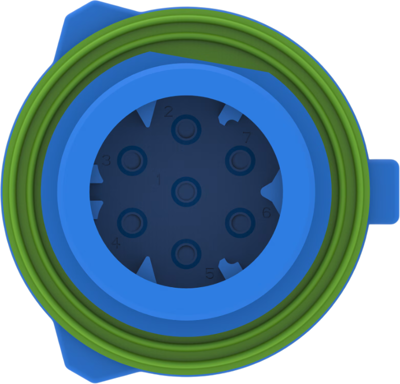

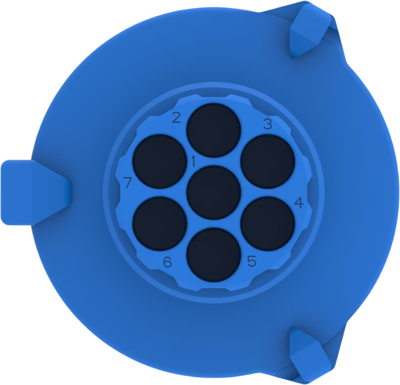

Plug, unequipped, 7 pole, straight, 4 rows, blue, 1-1718230-1
Order No.: 36P3980
EAN: 4099889904147
MPN:
1-1718230-1
Unit Price (€ / pc.)
2.8798 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
2.88 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8798 €
10 pcs.
2.6775 €
25 pcs.
2.4990 €
50 pcs.
2.2729 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 1-1718230-1, AMP
Connector & housing type: Housing for Male Terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 7, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, Body material: PBT GF, Primary product color: Blue, Connector code: A, Mating pin diameter: 1.5 mm, Strain relief: no, Centerline (pitch): 11.4 mm, Product height: 28 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 11.4 mm | |
| Contact type | plug | |
| Version | straight | |
| Rated voltage | 12 V | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 4 | |
| Colour | blue | |
| Pin number | 7 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
