1-1452721-1 | AMP

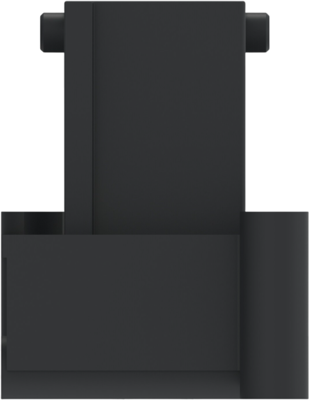

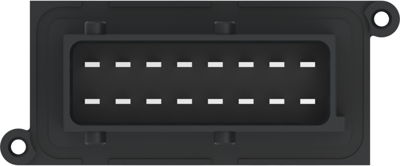

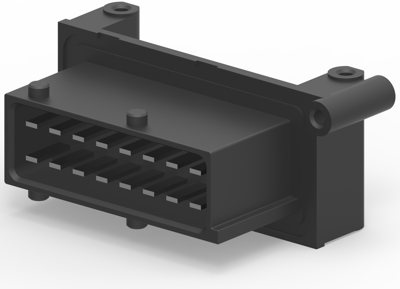

Plug, 16 pole, straight, 2 rows, black, 1-1452721-1
Order No.: 36P3232
EAN: 4099889901979
MPN:
1-1452721-1
Unit Price (€ / pc.)
8.6513 € *
Available in 5 Days: 5,095 pcs. - if ordered today
Total Price:
8.65 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6513 €
5 pcs.
8.2110 €
10 pcs.
7.6755 €
25 pcs.
6.9972 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB mount header, 1-1452721-1, AMP
Hybrid Header: no, Sealable: yes, Connector & contact terminates to: printed circuit board, Number of signal positions: 16, Number of positions: 16, PCB mount orientation: vertical, Number of rows: 2, Primary product color: black, Mating tab width: 3 mm, Mating tab thickness: 0.8 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: solder tail, Centerline (pitch): 5 mm, Product Length: 59 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, Shielded: no, Circuit application: signal, UL flammability rating: none, Packaging quantity: 240
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| Colour | black | |
| Pin number | 16 pole | |
| Contact type | plug | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Version | straight | |
| Number of rows | 2 | |
| Grid | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
