1-1452228-9 | AMP

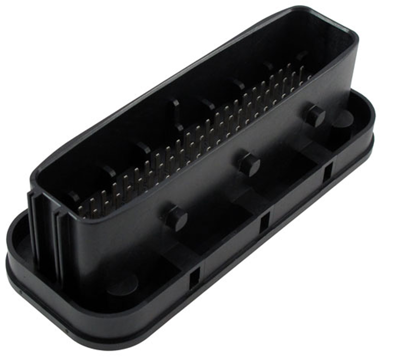

Plug, 92 pole, straight, 4 rows, black, 1-1452228-9
Unit Price (€ / pc.)
65.3191 € *
Standard delivery time from the manufacturer is: 16 Weeks
Hybrid Header, 1-1452228-9, AMP
Hybrid Header: no, Connector system: wire-to-board, Sealable: yes, Number of signal positions: 92, Number of positions: 92, PCB mount orientation: vertical, Number of rows: 4, Primary product color: black, Mating tab width: 1.5 mm, Mating tab thickness: 0.64 mm, Contact mating area plating material: Silver (Ag), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 4 mm, Width: 43.5 mm, Circuit application: signal, Packaging quantity: 16
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 4 mm | |
| Contact type | plug | |
| contact surface | silver-plated | |
| Version | straight | |
| Rated current | 40 A | |
| Rated voltage | 12 V | |
| Type of locking | No | |
| Number of rows | 4 | |
| Colour | black | |
| Pin number | 92 pole | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
