1-1355200-1 | AMP
Socket, unequipped, 2 pole, straight, 1 row, black, 1-1355200-1
Order No.: 36P4342
EAN: 4099889906370
MPN:
1-1355200-1
Unit Price (€ / pc.)
1.4994 € *
Available: 190 pcs.
Available in 5 Days: 4,800 pcs. - if ordered today
Total Price:
7.50 € *
Price list
Quantity
Price per unit*
5 pcs.
1.4994 €
10 pcs.
1.3923 €
25 pcs.
1.2971 €
50 pcs.
1.1662 €
*incl. VAT plus shipping costs
Subject to prior sale

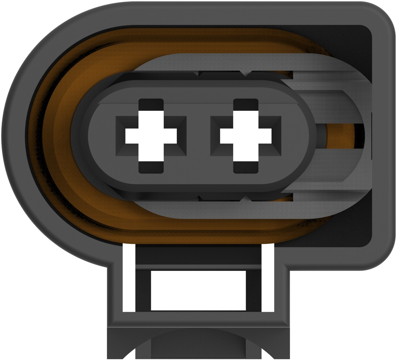

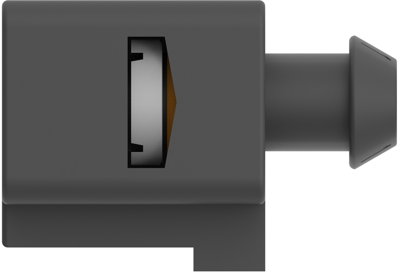

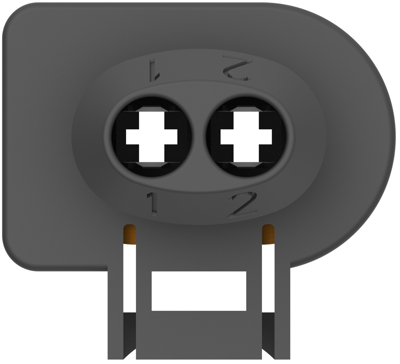

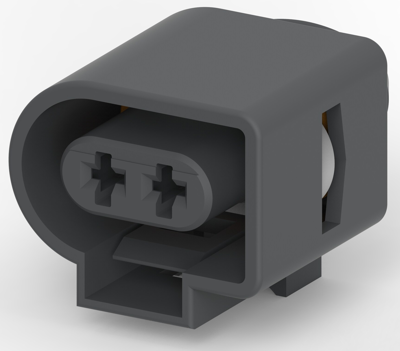

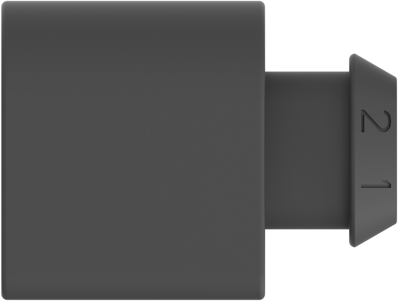

Socket housing, 1-1355200-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 2, Number of rows: 1, Body material: PA GF, Primary product color: black, Mating tab width: 2.8 mm, Strain relief: no, Centerline (pitch): 6 mm, Product height: 22.7 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -30-100 °C, UL flammability rating: UL 94HB, Packaging method: container, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 6 mm | |
| Contact type | socket | |
| Version | straight | |
| Rated voltage | 14 V | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | black | |
| Pin number | 2 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
