1-1355154-1 | AMP

Plug, 18 pole, straight, 2 rows, black, 1-1355154-1

Order No.: 36P1249
EAN: 4099889894356
MPN:
1-1355154-1
Series: MQS

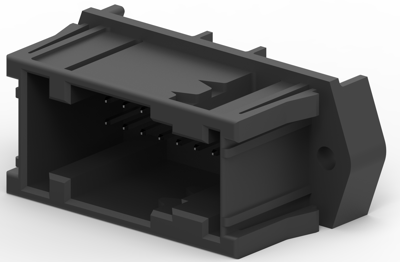

1-1355154-1 AMP Automotive Power Connectors Image 1

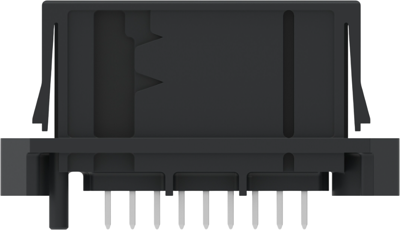

1-1355154-1 AMP Automotive Power Connectors Image 2

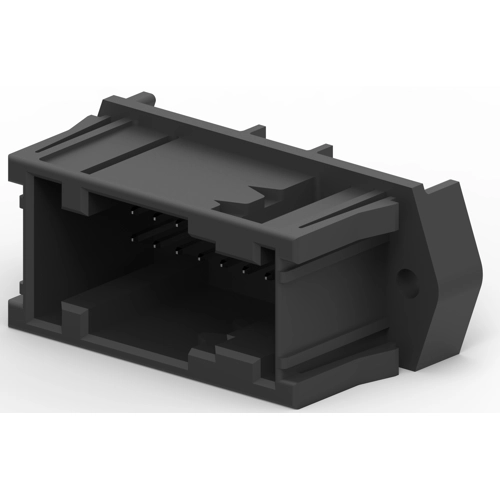

1-1355154-1 AMP Automotive Power Connectors Image 3
Image may differ
Unit Price (€ / pc.)
3.0226 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
3.02 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0226 €
10 pcs.
2.7846 €
50 pcs.
2.4990 €
100 pcs.
2.2491 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB mount header, 1-1355154-1, AMP

Hybrid Header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 18, Number of positions: 18, PCB mount orientation: vertical, Number of rows: 2, Primary product color: black, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 2.54 mm, Product Length: 41.3 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging quantity: 384, Interface number: 1355350

Technical specifications
Version straight
Colour black
Type of locking Yes
contact surface tin-plated
Pin number 18 pole
Connection solder connection
Grid 2.54 mm
Number of rows 2
Contact type plug
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
