828905-1 | AMP

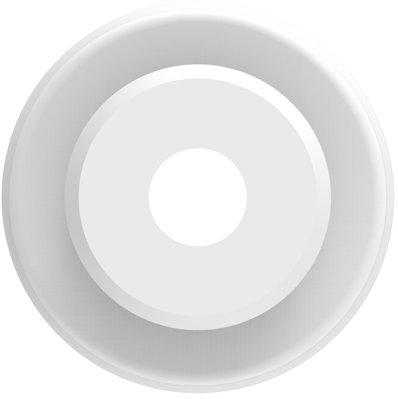

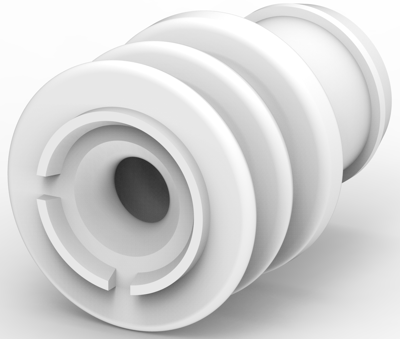

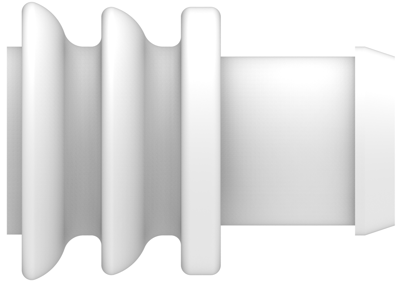

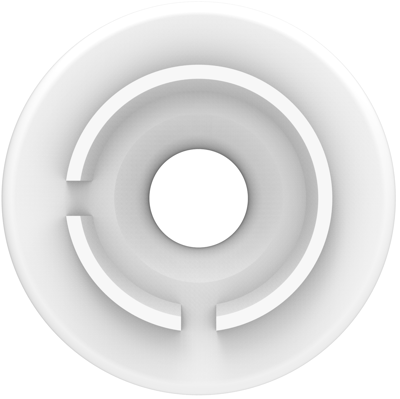

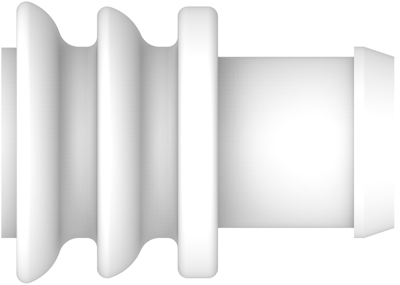

Wire seal for plug, 828905-1
Order No.: 36P2658
EAN: 4099891030377
MPN:
828905-1
Unit Price (€ / pc.)
0.0393 € *
Available: 5,216 pcs.
Available in 5 Days: 11,000 pcs. - if ordered today
Total Price:
3.93 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0393 €
200 pcs.
0.0345 €
500 pcs.
0.0309 €
1000 pcs.
0.0262 €
*incl. VAT plus shipping costs
Subject to prior sale
Wire seal, 828905-1, AMP
Seal Type: Single Wire Seal (SWS), Material: Silicone, Color: White, Cavity Diameter: 5.2 mm, Cable Insulation Diameter: 3 mm, Operating Temperature Range: -40 - 130 °C, UL Flammability Rating: None, Resistance to Hydrocarbons: Poor, Shore A Hardness: 50, Lubricant Content: Yes
Technische Daten
- Version: Wire seal
- Suitable for: Connector
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | wire seal | |
| Suitable for | plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
