1393457-4 | AMP
Seal, for connector, 1393457-4
Order No.: 36P2663
EAN: 4099889908329
MPN:
1393457-4
Unit Price (€ / pc.)
0.4522 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
0.45 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4522 €
10 pcs.
0.4284 €
25 pcs.
0.3927 €
50 pcs.
0.3570 €
*incl. VAT plus shipping costs
Subject to prior sale

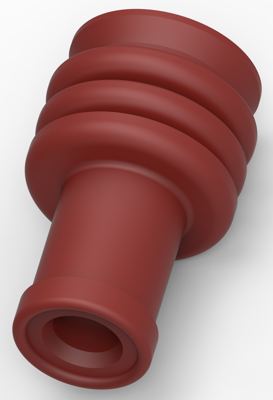

Single wire seal, 1393457-4, AMP
Connector seal type: single wire seal (SWS), Seal material: silicone, Primary product color: brown, Cavity diameter: 3.6 mm, Accepts cable insulation diameter range: 2.2-3 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, Operating temperature range: -40-130 °C, UL flammability rating: none.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | connector | |
| Product type | seal |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 40169300 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
