RK16812MG | ALPS
Motorized dual potentiometer, 10 kΩ, 0.05 W, logarithmisch, solder pin, RK16812MG
Unit Price (€ / pc.)
27.7865 € *
Available: 12 pcs.
Total Price:
27.79 € *
Price list
Quantity
Price per unit*
1 pcs.
27.7865 €
5 pcs.
26.1205 €
15 pcs.
25.1209 €
50 pcs.
24.0142 €
200 pcs.
22.6814 €
*incl. VAT plus shipping costs
Subject to prior sale

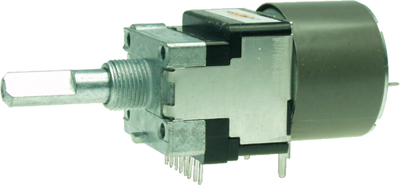

Potentiometer, RK16812MG, ALPS
This remote-controllable potentiometer supports motor driving and manual operation. It is suitable for various audio equipment.
Applications
- For controlling volume in amplifiers CD players, karaoke machines and radio cassettes

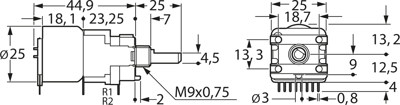

Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -10 °C | |
| Track Taper | logarithmic | |
| max. operating temperature | 70 °C | |
| Version | motorized dual potentiometer | |
| Connection | solder pin | |
| Assembly | angled | |
| Power | 0.05 W | |
| Width | 44.9 mm | |
| Mechanic rotary range | 300 ° | |
| Contact distance | RM 2.5 | |
| Length | 25 mm | |
| ohmic resistance | 10 kΩ | |
| axle diameter | 4.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334010 |
| Country of origin | MY |
| Original Packaging | Ammopack with 200 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
