402178 | ALPS

Dual film potentiometer, 100 kΩ, 0.05 W, linear, solder pin, 402178

Order No.: 68E8762
EAN: 4099879971357
MPN:
402178
RK 27112 2 X 50K LIN
Series: RK27

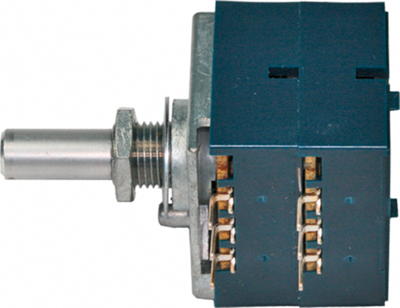

402178 ALPS Potentiometers Image 1
402178 ALPS Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
20.2895 € *
Available: 0 pcs.
Leadtime: 30 Weeks **
Total Price:
202.90 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
20.2895 €

Potentiometer, RK 27112 2 X 50K LIN, ALPS

This high class potentiometer offers excellent operational feel and high accuracy in gang error characteristics, resistance taper, etc.

Applications

  • For level controlling in high class audio equipment
  • For various control in mixing consoles
Technical specifications
Track Taper linear
Assembly angled
Width 25.3 mm
Mechanic rotary range 300 °
Power 0.05 W
Length 27 mm
Contact distance RM 5
axle diameter 6 mm
Version dual film potentiometer
min. operating temperature -10 °C
Connection solder pin
max. operating temperature 70 °C
ohmic resistance 100 kΩ
Logistics
Country of origin JP
Customs tariff number 85334010
Original Packaging Ammopack with 100 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
