401722 | ALPS
Motorized dual potentiometer, 100 kΩ, 0.05 W, logarithmisch, solder pin, 401722
Unit Price (€ / pc.)
29.9166 € *
Available: 30 pcs.
Total Price:
29.92 € *
Price list
Quantity
Price per unit*
1 pcs.
29.9166 €
5 pcs.
28.1197 €
15 pcs.
27.0487 €
50 pcs.
25.8468 €
200 pcs.
24.4069 €
*incl. VAT plus shipping costs
Subject to prior sale

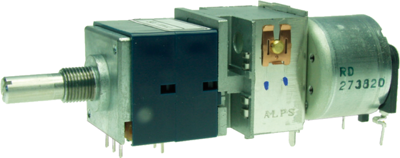

Potentiometer, RK27112MC 100K, ALPS
This remote-controllable potentiometer supports motor driving and manual operation. It is suitable for various audio equipment.
Applications
- For controlling volume in amplifiers CD players, karaoke machines and radio cassettes

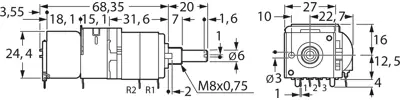

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Mechanic rotary range | 300 ° | |
| Power | 0.05 W | |
| Contact distance | RM 5 | |
| Connection | solder pin | |
| max. operating temperature | 70 °C | |
| axle diameter | 6 mm | |
| Length | 27 mm | |
| Assembly | angled | |
| Width | 68.35 mm | |
| min. operating temperature | -10 °C | |
| Track Taper | logarithmic | |
| ohmic resistance | 100 kΩ | |
| Version | motorized dual potentiometer |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Original Packaging | Ammopack with 200 pieces |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
