STEC16B04 | ALPS

Incremental encoder, 5 V, impulses 24, STEC16B04

Order No.: 75E676
EAN: 4099889455861
MPN:
STEC16B04
401758
Series: STEC

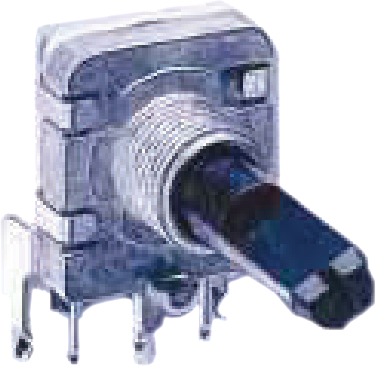

STEC16B04 ALPS Motion Sensors Image 1

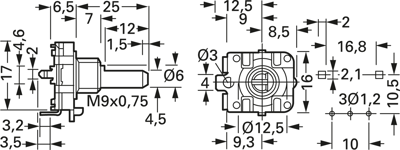

STEC16B04 ALPS Motion Sensors Image 2
Image may differ
Unit Price (€ / pc.)
3.1059 € *
Available: 150 pcs.
Next delivery: 1,000 pcs. on 2025-10-24
Total Price:
3.11 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1059 €
25 pcs.
2.6299 €
100 pcs.
2.4395 €
250 pcs.
2.3086 €
1000 pcs.
2.1182 €
*incl. VAT plus shipping costs
Subject to prior sale

Incremental encoder, STEC16B04, ALPS

16 mm basic dimension, plastic shaft; Pulses: 24. Detents: 24, depending on the type. Shaft: 6.0 mm, flattened, length 25 mm. Rated voltage/rated current: 5.0 VDC/0.5 mA. Holding voltage: 50 VAC. Insulation resistance: 10 Mohm min (50 VDC).

Technical attributes (type, mounting position, version): STEC16B04, vertical mounting, with detents.

Technical specifications
Filter Property Value
Assembly through hole
Connection solder pin
Voltage 5 V
Pulses per revolution 24
Product type incremental encoder
Length 35.1 mm
Logistics
Property Value
Country of origin MY
Customs tariff number 85365015
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
