RV16A-10 6,35MM 5K LIN | ALPHA

Film potentiometer, 5 kΩ, 0.2 W, linear, solder lug, RV16A-10 6,35MM 5K LIN

Order No.: 75E854
EAN: 4099879974273
MPN:
RV16A-10 6,35MM 5K LIN
Series: ALPHA POT 16

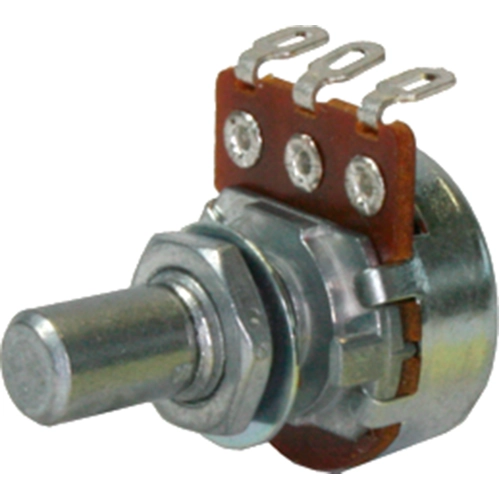

RV16A-10 6,35MM 5K LIN ALPHA Potentiometers Image 1
RV16A-10 6,35MM 5K LIN ALPHA Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
2.8679 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2.87 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8679 €
25 pcs.
2.4276 €
100 pcs.
2.2491 €
250 pcs.
2.1539 €
1000 pcs.
1.9516 €
*incl. VAT plus shipping costs
Subject to prior sale

Film potentiometer, type ALPHA POT 16 RV16A-10.

6.35 mm metal shaft, for wiring; Shaft length: 15 mm. Adjustment range: 300° ±5.0 %. Bushing mount: M 7 x 0.75 mm.

Linear.

Load rating: 0.2 W.

Type: 5K0

Technical specifications
Filter Property Value
Track Taper linear
Assembly straight
Power 0.2 W
Connection solder lug
Mechanic rotary range 300 °
Version film potentiometer
max. number of revolutions 1
Width 9.5 mm
ohmic resistance 5 kΩ
axle diameter 6.35 mm
Length 16.5 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85334010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 6/8/11
RoHS conform Yes
