RV16A-10 6,35MM 1M LIN | ALPHA

Film potentiometer, 1 MΩ, 0.2 W, linear, solder lug, RV16A-10 6,35MM 1M LIN

Order No.: 75E868
EAN: 4099879974341
MPN:
RV16A-10 6,35MM 1M LIN
Series: ALPHA POT 16

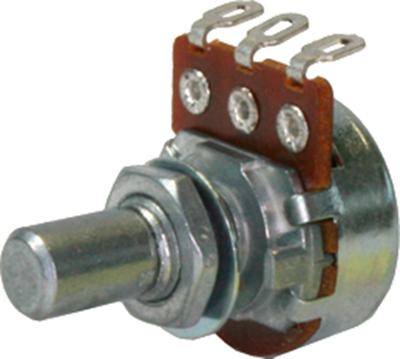

RV16A-10 6,35MM 1M LIN ALPHA Potentiometers Image 1

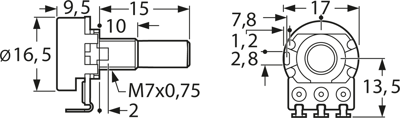

RV16A-10 6,35MM 1M LIN ALPHA Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
1.5232 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
76.16 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
1.5232 €

Film potentiometer, type ALPHA POT 16 RV16A-10.

6.35 mm metal shaft, for wiring; Shaft length: 15 mm. Adjustment range: 300° ±5.0 %. Bushing mount: M 7 x 0.75 mm.

Linear.

Load rating: 0.2 W.

Type: 1M0

Technical specifications
Filter Property Value
Track Taper linear
Assembly straight
Power 0.2 W
Connection solder lug
Mechanic rotary range 300 °
Version film potentiometer
max. number of revolutions 1
Width 9.5 mm
ohmic resistance 1 MΩ
axle diameter 6.35 mm
Length 16.5 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85334010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 6/8/11
RoHS conform Yes
