ATS16351PSMGTN | Allegro

Camshaft speed sensor IC, 3.6-24 V, ATS16351PSMGTN, SIP-3, -40 to 160 °C, ATS16351PSMGTN

Order No.: 60S0032
MPN:
ATS16351PSMGTN
ATS16351PSMGTN Allegro Sensor ICs
Image may differ
Unit Price (€ / pc.)
7.5791 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
7.58 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.5791 €

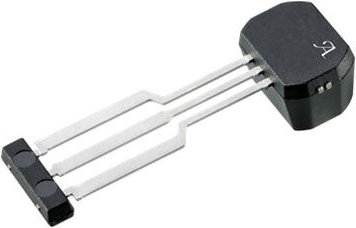

GMR Camshaft Speed Sensor IC, ATS16351PSMGTN, Allegro

The ATS16351PSMGTN is a true power-on state (TPOS) camshaft sensor incorporating a back-biasing magnet, an advanced fully synchronous digital integrated circuit (IC), and an EMC protection circuit, all in a single sensing solution. The ATS16351PSMGTN incorporates a giant-magnetoresistance (GMR) bridge with an optimized custom magnetic circuit that switches in response to a magnetic signal induced by a ferromagnetic target. The IC contains a sophisticated digital circuit designed to match the temperature behavior of the sensor IC with the integrated magnet.

Signal processing is used to provide zero-speed performance independent of air gap and is designed for the typical operating condition found in an automotive camshaft sensing application. The resulting output of the device is a digital representation of the ferromagnetic target profile. The auto-TPOS feature of the ATS16351PSMGTN enables the sensor IC to identify the installation air gap inside of the engine and to automatically reprogram into memory the optimal threshold for power-on accuracy. A number of factory-programmable options allow for performance optimization to meet specific application requirements.

Features

  • True target-state recognition at device power-on (TPOS)
  • Integrated diagnostics and certified safety design process for ASIL B compliance
  • EEPROM programming for performance optimization, temperature compensation, and production traceability
  • Flexible orientation: Able to be mounted at any angle with correct configuration
  • Stray-field immunity: Resists aggressor stray fields found in hybrid vehicle environments
  • Backward compatibility with Allegro Hall-effect solutions
Technical specifications
Filter Property Value
Assembly THT
Enclosure SIP-3
max. operating temperature 160 °C
min. operating temperature -40 °C
Version camshaft speed sensor IC
Voltage 3.6-24 V
Logistics
Property Value
Country of origin PH
MSL MSL 2
Customs tariff number 85429000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
