ACS722LLCTR-10AB-T | Allegro

Current sensor IC, 3-3.6 V, ACS722LLCTR-10AB-T, SOIC-8, -40 to 150 °C, ACS722LLCTR-10AB-T

Order No.: 60S0008
MPN:
ACS722LLCTR-10AB-T
ACS722LLCTR-10AB-T Allegro Sensor ICs

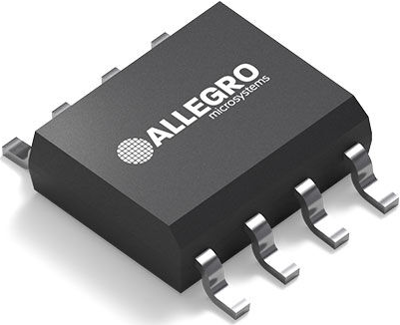

Image may differ
Unit Price (€ / pc.)
4.8826 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
4.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.8826 €

Hall Effect Linear Current Sensor, ACS722LLCTR-10AB-T, Allegro

The ACS722LLCTR-10AB-T current sensor IC is an economical and precise solution for AC or DC current sensing in industrial, commercial, and communications systems. Its small package is ideal for space-constrained applications, while also reducing cost through minimized board area. Typical applications include motor control, load detection and management, switched-mode power supplies, and overcurrent fault protection. The ACS722LLCTR-10AB-T consists of a precise, low-offset, linear Hall-effect sensor circuit with a copper conduction path located near the surface of the die. Current flowing through this copper path generates a magnetic field, which is sensed by the integrated Hall IC and converted into a proportional voltage. Device accuracy is optimized by the close proximity of the magnetic field to the Hall transducer.

The ACS722LLCTR-10AB-T is provided in a small, low-profile, surface-mount SOIC8 package. The leadframe is plated with 100% matte tin, making it compatible with standard lead (Pb)-free printed circuit board assembly processes. Internally, the flip-chip device is considered Pb-free; however, the solder bump connections are available in either a Pb-free or high-temperature Pb-based option.

Features

  • Industry-leading noise performance with greatly improved bandwidth through proprietary amplifier and filter design techniques
  • Factory-trimmed sensitivity and quiescent output voltage for improved accuracy
  • Chopper stabilization results in extremely stable quiescent output voltage
  • Nearly zero magnetic hysteresis
  • Ratiometric output from supply voltage
Technical specifications
Filter Property Value
Assembly SMD
Enclosure SOIC-8
max. operating temperature 150 °C
min. operating temperature -40 °C
Version current sensor IC
Voltage 3-3.6 V
Logistics
Property Value
Country of origin MY
MSL MSL 2
Customs tariff number 85429000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
