ACS711KLCTR-25AB-T | Allegro

Current sensor IC, 3-5.5 V, ACS711KLCTR-25AB-T, SOIC-8, -40 to 125 °C, ACS711KLCTR-25AB-T

Order No.: 60S0006
MPN:
ACS711KLCTR-25AB-T

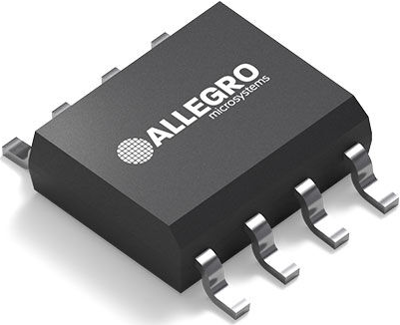

ACS711KLCTR-25AB-T Allegro Sensor ICs
Image may differ
Unit Price (€ / pc.)
2.3300 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
2.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.3300 €

Hall Effect Linear Current Sensor, ACS711KLCTR-25AB-T, Allegro

The ACS711KLCTR-25AB-T provides economical and precise solutions for AC or DC current sensing in <100 V audio, communications systems, and white goods. The device consists of a linear Hall sensor circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field that is sensed by the integrated Hall IC and converted into a proportional voltage. Device accuracy is optimized through the close proximity of the magnetic signal to the Hall transducer. The output of the device has a positive slope proportional to the current flow from IP+ to IP- (pins 1 and 2 to pins 3 and 4). The internal resistance of this conductive path is 0.6 mΩ for the EX package, and 1.2 mΩ for the LC package, providing a non-intrusive measurement interface that saves power in applications that require energy efficiency.

The ACS711KLCTR-25AB-T is optimized for low-side current sensing applications, although the terminals of the conductive path are electrically isolated from the sensor IC leads, providing sufficient internal creepage and clearance dimensions for a low AC or DC working voltage applications. The thickness of the copper conductor allows the survival of the device at up to 5× overcurrent conditions. The ACS711KLCTR-25AB-T is provided in small, surface-mount packages: SOIC8 and QFN12. The lead frame is plated with 100% matte tin, which is compatible with standard lead (Pb) free printed circuit board assembly processes. Internally, the device is Pb-free, except for flip-chip high-temperature Pb-based solder balls, currently exempt from RoHS. The device is fully calibrated prior to shipment from the factory.

Features

  • No external sense resistor required; single package solution
  • Economical low- and high-side current sensing
  • Low-noise analog signal path
  • Integrated electrostatic shield for output stability
  • Factory-trimmed for accuracy
  • Zero magnetic hysteresis
  • Ratiometric output from supply voltage
Technical specifications
Filter Property Value
Assembly SMD
Enclosure SOIC-8
max. operating temperature 125 °C
min. operating temperature -40 °C
Version current sensor IC
Voltage 3-5.5 V
Logistics
Property Value
Country of origin MY
MSL MSL 2
Customs tariff number 85429000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
