A1395SEHLT-T | Allegro

Hall effect sensor, 2.5-3.5 V, A1395SEHLT-T, MLP-6, -20 to 85 °C, A1395SEHLT-T

Order No.: 60S0022
MPN:
A1395SEHLT-T

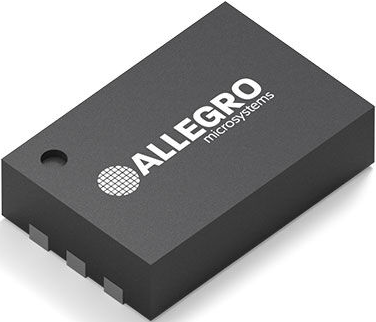

A1395SEHLT-T Allegro Sensor ICs
Image may differ
Unit Price (€ / pc.)
1.4006 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.4006 €

Linear Hall-Effect Sensor Ics, A1395SEHLT-T, Allegro

The A1395SEHLT-T linear Hall-effect sensor integrated circuit (IC) provides a voltage output that is directly proportional to an applied magnetic field. Before amplification, the sensitivity of a typical Hall-effect IC (measured in mV/G) is directly proportional to the current flowing through the Hall-effect transducer element inside the IC. In many applications, it is difficult to achieve sufficient sensitivity levels with a Hall-effect sensor IC without consuming more than 3 mA of current. The A1395SEHLT-T minimizes current consumption to less than 25 µA through the addition of a user-selectable sleep mode. This makes the device perfect for battery-operated applications such as cellular phones, digital cameras, and portable tools.

Features

  • High-impedance output during sleep mode
  • Ratiometric output scales with the ratiometric supply reference voltage (VREF pin)
  • Temperature-stable quiescent output voltage and sensitivity
  • ESD protection greater than 3 kV
  • Solid-state reliability
Technical specifications
Filter Property Value
Assembly SMD
Enclosure MLP-6
max. operating temperature 85 °C
min. operating temperature -20 °C
Version hall effect sensor
Voltage 2.5-3.5 V
Logistics
Property Value
Country of origin CN
MSL MSL 1
Customs tariff number 85429000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
