01757 | ALFRA

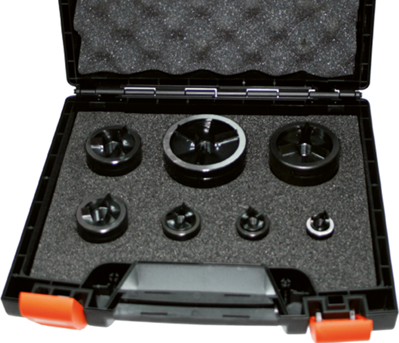

Sheet metal dies, 01757, set of 7 sizes, D 16.2/20.4/25.4/32.5/40.5/50.5/63.5 mm
Images may differ
Total price
(
483.0210 €
* / pcs.)
483.02 €
Currently not in stock, we will order for you
Description
Product by ALFRA at Bürklin Elektronik
Sets of sheet metal dies for hydraulic punches, type Alfra Tristar 01757.
For standard steel grade St 37, includes 7 punches and dies (M16 to M 63). Thrust blots are not included (supplied with the punch).
Type: 01757, sheet metal dies, set of 7 sizes, D 16.2/20.4/25.4/32.5/40.5/50.5/63.5 mm
Technical specifications
| Thread size | M16 | |
| Hole diameter | 16.2 mm | |
| Perforation | round |
Logistics
| Country of origin | DE |
| Customs tariff number | 82073010 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
