01695 | ALFRA

Sheet metal punch, 01695, M 25, 25.4 mm, Sr 9.5 x 50 mm

Order No.: 06L1344
EAN: 4099891379049
MPN:
01695
01695 ALFRA Sheet Metal Punches
Image may differ
Unit Price (€ / pc.)
38.0205 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
38.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
38.0205 €

Sheet metal punches for round recesses, type Alfra Tristar 01.

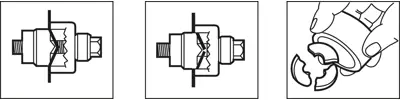

For metric ISO sizes in accordance with EN 50262. Design and application similar to standard sheet metal punch, but with punch die for standard steel. The waste piece is cut into 3 even pieces. The thrust bolt must be greased when operated with an open-end wrench; Sheet metal thickness: 2.0 mm standard steel. Pilot hole: 6.2 to 6.5 mm for thrust bolt with 6.0 mm D, 9.7 to 10 mm for thrust bolt with 9.5 mm D, 19.5 to 20 mm for thrust bolt with 20 mm.

Technical attributes (type, size, thrust bolt (Sr)): 01695, M 25, 25.4 mm, Sr 9.5 x 50 mm

Technical specifications
Cutting capacity 2 mm
Hole diameter 25.4 mm
Perforation round
Thread size M25
Logistics
Customs tariff number 82073010
Country of origin DE
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform not_relevant
