01674 | ALFRA
Metal plate hole punch, round, M12, 01674
Order No.: 06L1341
EAN: 4099891379018
MPN:
01674
Unit Price (€ / pc.)
29.988 € *
Standard delivery time from the manufacturer is: 1 Week
Sheet metal punches for round recesses, type Alfra Tristar 01.

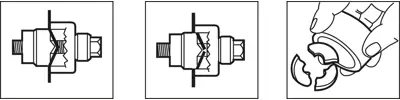

For metric ISO sizes in accordance with EN 50262. Design and application similar to standard sheet metal punch, but with punch die for standard steel. The waste piece is cut into 3 even pieces. The thrust bolt must be greased when operated with an open-end wrench; Sheet metal thickness: 2.0 mm standard steel. Pilot hole: 6.2 to 6.5 mm for thrust bolt with 6.0 mm D, 9.7 to 10 mm for thrust bolt with 9.5 mm D, 19.5 to 20 mm for thrust bolt with 20 mm.
Technical attributes (type, size, thrust bolt (Sr)): 01674, M 12, 12.5 mm, Sr 6.0 x 40 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thread size | M12 | |
| Hole diameter | 12.5 mm | |
| Cutting capacity | 1.5 mm | |
| Perforation | round | |
| Product type | metal plate hole punch |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 82073010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
