6-6437630-2 | Alcoswitch

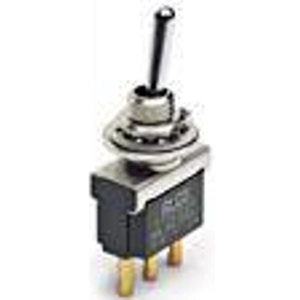

Toggle switch, metal, 1 pole, latching, On-Off-On, 6 A/250 VAC, silver-plated, 6-6437630-2
Unit Price (€ / pc.)
9.2939 € *
Standard delivery time from the manufacturer is: 36 Weeks
Toggle Switch, 6-6437630-2, Alcoswitch
Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Baton Standard, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Single Pole - Double Throw, Operating Function: On Off On, Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 125 V,250 V, Toggle Switch Voltage Rating: 125 VAC,250 VAC, Color: Black, Bushing Thread Size: M6 x .75, Toggle Switch Seal Type: Waterproof, Bushing Style: Threaded, Contact Base Material: Copper Alloy, Switch Contact Plating Material: Silver, Toggle Switch Contact Current Rating: 6 A, Termination Type: Lead Wire - Hooking Type,Vertical, Toggle Switch Mounting Type: Solder, Process Sealed: No, Toggle Length: 10.5 mm, UL Flammability Rating: UL 94V-0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | latching | |
| contact surface | silver-plated | |
| illuminated | No | |
| Design | vertical | |
| Pin number | 1 pole | |
| Breaking capacity | 6 A/250 VAC | |
| Shift position | On-Off-On | |
| Type of mounting | central Mounting | |
| Actuator colour | metal | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
