5-1825136-4 | Alcoswitch

Toggle switch, metal, 1 pole, latching, On-On, 5 A/120 VAC, 28 VDC, silver-plated, 5-1825136-4

Order No.: 19G1795
EAN: 4099889181647
MPN:
5-1825136-4
A101TCQ04

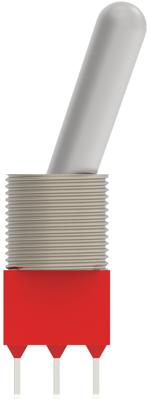

5-1825136-4 Alcoswitch Toggle Switches Image 1

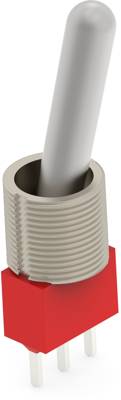

5-1825136-4 Alcoswitch Toggle Switches Image 2

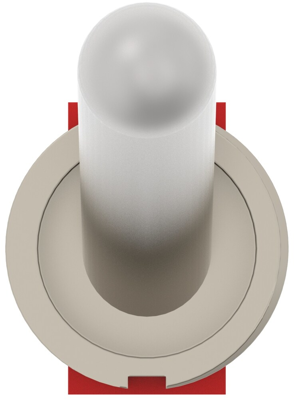

5-1825136-4 Alcoswitch Toggle Switches Image 3

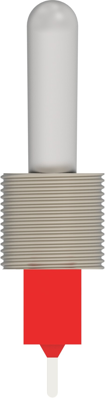

5-1825136-4 Alcoswitch Toggle Switches Image 4

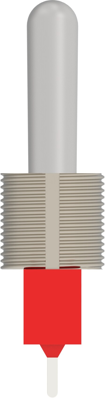

5-1825136-4 Alcoswitch Toggle Switches Image 5
Image may differ
Unit Price (€ / pc.)
11.6263 € *
Available in 5 Days: 160 pcs. - if ordered today
Total Price:
11.63 € *
Price list
Quantity
Price per unit*
1 pcs.
11.6263 €
10 pcs.
10.7933 €
25 pcs.
10.0793 €
50 pcs.
9.1630 €
*incl. VAT plus shipping costs
Subject to prior sale

Toggle Switch, 5-1825136-4, Alcoswitch

Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Large with Bushing, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Single Pole - Double Throw, Operating Function: On On, Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 28 VDC, Toggle Switch Voltage Rating: 125 VAC, 28 VDC, Toggle Switch Voltage Rating: 120 VAC, Actuator Finish: Nickel, Bushing Thread Size: 1/4-40, Toggle Switch Seal Type: Terminal Seal (Epoxy), Bushing Style: Threaded, Contact Base Material: Copper, Switch Contact Plating Material: Silver, Toggle Switch Contact Current Rating: 5 A, Termination Type: Printed Circuit, Toggle Switch Mounting Type: Through Hole, Process Sealed: No, Toggle Length: 12.4 mm, UL Flammability Rating: UL 94V-1

Technical specifications
Filter Property Value
Latching switching function latching
Shift position On-On
illuminated No
Breaking capacity 5 A/120 VAC, 28 VDC
Type of mounting central Mounting
Pin number 1 pole
Design vertical
Actuator colour metal
Connection PCB connection
contact surface silver-plated
Logistics
Property Value
Customs tariff number 85365080
Country of origin US
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
SVHC free No
