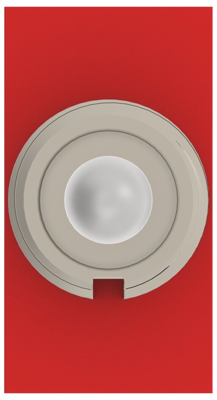

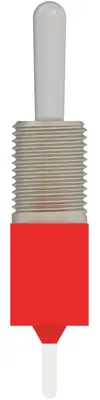

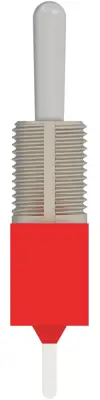

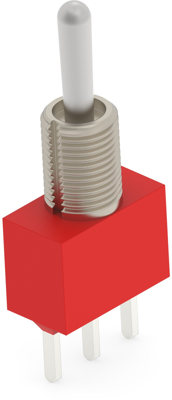

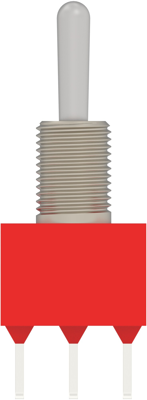

4-1825136-5 | Alcoswitch
Toggle switch, 1 pole, latching, On-On, 5 A/120 VAC, 28 VDC, silver-plated
Images may differ
Unit Price (€ / pc.)
4.0222 € *
Available: 125 pcs.
Leadtime: 24 Weeks **
Total Price:
4.02 € *
Quantity
Price per unit*
1 pcs.
4.0222 €
10 pcs.
3.5343 €
100 pcs.
3.1059 €
250 pcs.
2.9869 €
1000 pcs.
2.7965 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Toggle Switches, 4-1825136-5, Alcoswitch
Technical Data
- Contact Resistance (mΩ): 10
- Voltage Rating (VAC): 120
- Dielectric Strength (VAC): 1000
- Insulation Resistance (MΩ): 1000
Technical specifications
| Connection | solder connection | |
| Design | vertical | |
| Type of mounting | central Mounting | |
| illuminated | No | |
| Actuator colour | metal | |
| contact surface | silver-plated | |
| Pin number | 1 pole | |
| Latching switching function | latching | |
| Breaking capacity | 5 A/120 VAC, 28 VDC | |
| Shift position | On-On |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
