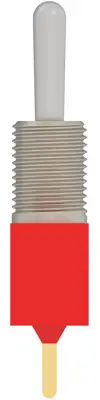

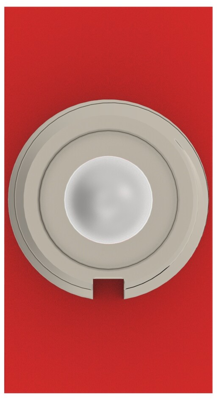

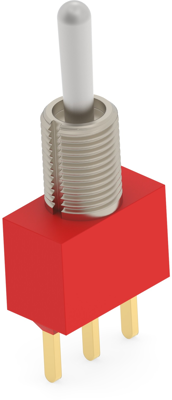

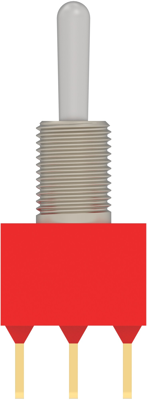

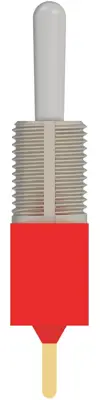

4-1825136-4 | Alcoswitch
Toggle switch, metal, 1 pole, latching, On-On, 0.4 VA/20 V AC/DC, gold-plated, 4-1825136-4
Unit Price (€ / pc.)
6.5212 € *
Available in 5 Days: 1,517 pcs. - if ordered today
Total Price:
6.52 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5212 €
10 pcs.
5.9381 €
50 pcs.
5.3431 €
100 pcs.
4.8076 €
*incl. VAT plus shipping costs
Subject to prior sale
Toggle Switch, 4-1825136-4, Alcoswitch
Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Baton Long, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Single Pole - Double Throw, Operating Function: On On, Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 20 VDC, Toggle Switch Voltage Rating: 20 V, Toggle Switch Voltage Rating: 20 VAC, Actuator Finish: Nickel, Bushing Thread Size: 1/4-40, Toggle Switch Seal Type: Terminal Seal (Epoxy), Bushing Style: Threaded, Contact Base Material: Copper, Switch Contact Plating Material: Gold, Toggle Switch Contact Current Rating: .4 A, Termination Type: Printed Circuit, Toggle Switch Mounting Type: Through Hole, Process Sealed: No, Toggle Length: 10.4 mm, UL Flammability Rating: UL 94V-1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breaking capacity | 0.4 VA/20 V AC/DC | |
| contact surface | gold-plated | |
| Pin number | 1 pole | |
| Shift position | On-On | |
| illuminated | No | |
| Latching switching function | latching | |
| Design | vertical | |
| Type of mounting | central Mounting | |
| Connection | PCB connection | |
| Actuator colour | metal |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
