4-1437559-6 | Alcoswitch

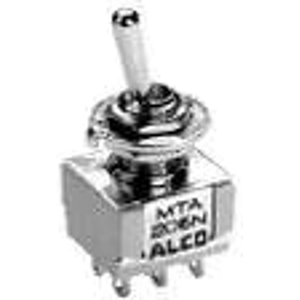

Toggle switch, metal, 1 pole, latching, On-On, 6 A/125 VAC, 4 A/28 VDC, gold-plated, 4-1437559-6

Order No.: 19G1940
EAN: 4099889183023
MPN:
4-1437559-6
MTM106DPC
4-1437559-6 Alcoswitch Toggle Switches
Image may differ
Unit Price (€ / pc.)
6.8782 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
687.82 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
6.8782 €

Toggle Switch, 4-1437559-6, Alcoswitch

Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Baton Short, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Single Pole - Double Throw, Operating Function: On None On, Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 28 VDC, Toggle Switch Voltage Rating: 125 VAC, Toggle Switch Voltage Rating: 125 VAC, Actuator Finish: Chrome, Bushing Thread Size: 1/4-40, Toggle Switch Seal Type: Terminal Seal (Insert Molded), Bushing Style: Threaded, Contact Base Material: Copper Alloy, Switch Contact Plating Material: Gold Flash over Silver, Toggle Switch Contact Current Rating: 6 A, Termination Type: Printed Circuit,Vertical, Toggle Switch Mounting Type: Panel, Process Sealed: No, Toggle Length: 6.86 mm, UL Flammability Rating: UL 94V-0, Comment: UL available when ordering - consult factory.

Technical specifications
contact surface gold-plated
Type of mounting central Mounting
Breaking capacity 6 A/125 VAC, 4 A/28 VDC
Actuator colour metal
Pin number 1 pole
Design vertical
illuminated No
Connection PCB connection
Shift position On-On
Latching switching function latching
Logistics
Country of origin IN
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
