4-1437558-3 | Alcoswitch

Toggle switch, metal, 4 pole, latching, On-On, 6 A/125 VAC, 4 A/28 VDC, gold-plated, 4-1437558-3

Order No.: 19G1919
EAN: 4099889182828
MPN:
4-1437558-3
MTA406N
Series: MTA

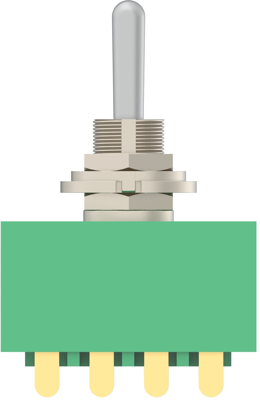

4-1437558-3 Alcoswitch Toggle Switches Image 1

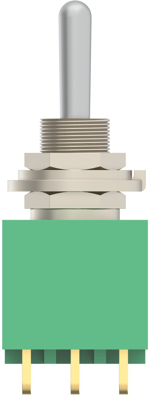

4-1437558-3 Alcoswitch Toggle Switches Image 2

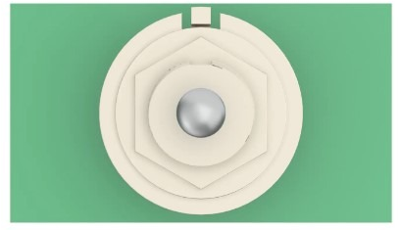

4-1437558-3 Alcoswitch Toggle Switches Image 3

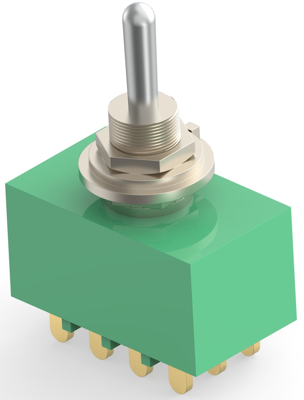

4-1437558-3 Alcoswitch Toggle Switches Image 4

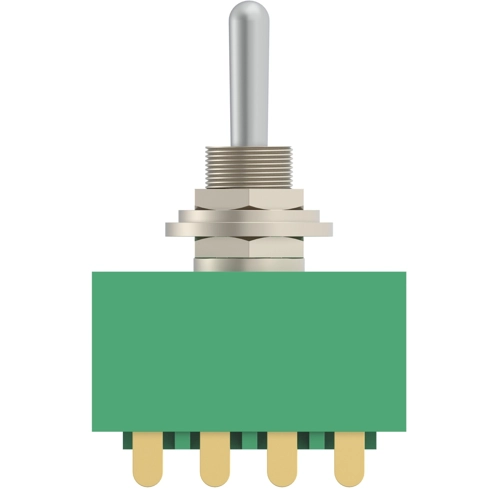

4-1437558-3 Alcoswitch Toggle Switches Image 5
Image may differ
Unit Price (€ / pc.)
21.6580 € *
Standard delivery time from the manufacturer is: 44 Weeks
Total Price:
2,165.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
21.6580 €

Toggle Switch, 4-1437558-3, Alcoswitch

Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Baton Long, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Four Pole - Double Throw, Operating Function: On None On, Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 28 VDC, Toggle Switch Voltage Rating: 125 VAC, Toggle Switch Voltage Rating: 125 VAC, Color: Green, Bushing Thread Size: 1/4-40, Toggle Switch Seal Type: Terminal Seal (Insert Molded), Bushing Style: Threaded, Contact Base Material: Copper Alloy, Switch Contact Plating Material: Gold Flash over Silver, Toggle Switch Contact Current Rating: 6 A, Termination Type: Vertical,Wire Lugs, Toggle Switch Mounting Type: Panel, Process Sealed: No, Toggle Length: 10.49 mm, UL Flammability Rating: UL 94V-0, Comment: UL available when ordering - consult factory.

Technical specifications
Filter Property Value
Latching switching function latching
contact surface gold-plated
illuminated No
Design vertical
Pin number 4 pole
Breaking capacity 6 A/125 VAC, 4 A/28 VDC
Shift position On-On
Type of mounting central Mounting
Actuator colour metal
Connection solder connection
Logistics
Property Value
Country of origin IN
Customs tariff number 85365003
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
