3-6437592-9 | Alcoswitch

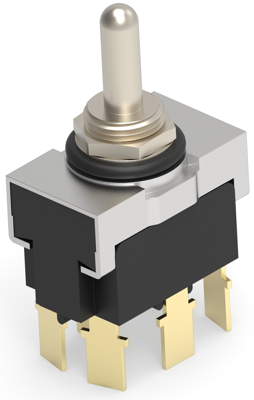

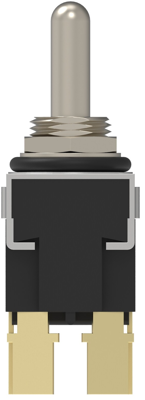

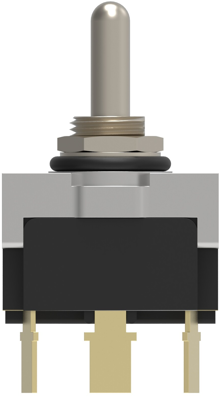

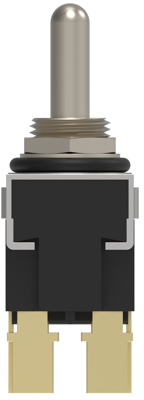

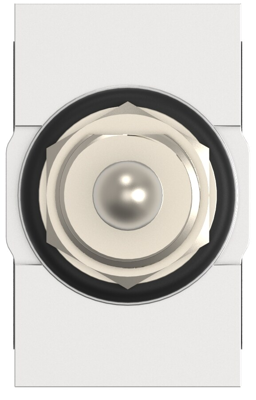

Toggle switch, metal, 2 pole, latching, On-Off-On, 20 A/125 VAC, 30 VDC, 3-6437592-9
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
71.5190 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
71.52 € *
Price list
Quantity
Price per unit*
1 pcs.
71.5190 €
2 pcs.
66.9137 €
5 pcs.
62.8558 €
10 pcs.
58.4290 €
*incl. VAT plus shipping costs
Subject to prior sale
Toggle Switch, 3-6437592-9, Alcoswitch
Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Baton, Toggle Switch Type: Power Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Double Pole - Double Throw, Operating Function: On Off On, Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 28 VDC, Toggle Switch Voltage Rating: 125 VAC,250 VAC, Toggle Switch Voltage Rating: 125 VAC,250 VAC, Toggle Switch Seal Type: O-Ring, Bushing Style: Unthreaded, Contact Base Material: Brass, Switch Contact Plating Material: Silver Alloy, Toggle Switch Contact Current Rating: 20 A, Termination Type: .25 x .032 Quick Connect Terminals, Toggle Switch Mounting Type: Panel, Toggle Length: 17.48 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | latching | |
| Pin number | 2 pole | |
| Shift position | On-Off-On | |
| Actuator colour | metal | |
| illuminated | No | |
| Connection | faston plug | |
| Design | vertical | |
| Type of mounting | central Mounting | |
| Breaking capacity | 20 A/125 VAC, 30 VDC | |
| Protection class | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
