3-1825137-9 | Alcoswitch

Toggle switch, metal, 1 pole, groping/latching, (On)-Off-(On), 5 A/120 VAC, 28 VDC, silver-plated, 3-1825137-9

Order No.: 19G1821
EAN: 4099889181876
MPN:
3-1825137-9
A105SYZQ04
Series: Gemini A

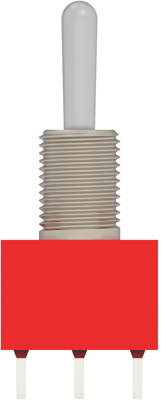

3-1825137-9 Alcoswitch Toggle Switches Image 1

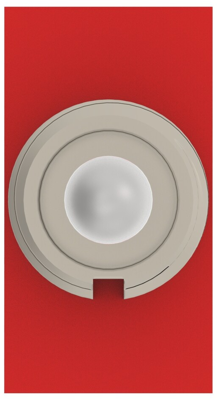

3-1825137-9 Alcoswitch Toggle Switches Image 2

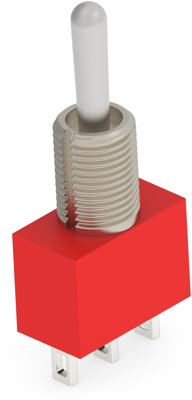

3-1825137-9 Alcoswitch Toggle Switches Image 3

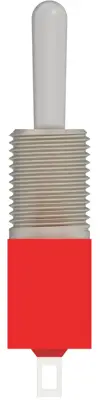

3-1825137-9 Alcoswitch Toggle Switches Image 4

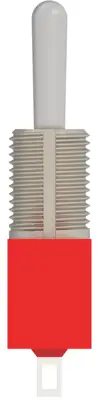

3-1825137-9 Alcoswitch Toggle Switches Image 5
Image may differ
Unit Price (€ / pc.)
3.4748 € *
Available: 16 pcs.
Total Price:
3.47 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.4748 €

Toggle Switch, 3-1825137-9, Alcoswitch

Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Baton Long, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Single Pole - Double Throw, Operating Function: (On) Off (On), Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 28 VDC, Toggle Switch Voltage Rating: 125 VAC, 28 VDC, Toggle Switch Voltage Rating: 120 VAC, Actuator Finish: Nickel, Bushing Thread Size: 1/4-40, Toggle Switch Seal Type: Terminal Seal (Epoxy), Bushing Style: Threaded, Contact Base Material: Copper, Switch Contact Plating Material: Silver, Toggle Switch Contact Current Rating: 5 A, Termination Type: Wire Lugs, Toggle Switch Mounting Type: Solder, Process Sealed: No, Toggle Length: 10.4 mm, UL Flammability Rating: UL 94V-1

Technical specifications
Filter Property Value
Actuator colour metal
Pin number 1 pole
Connection solder connection
Latching switching function groping/latching
illuminated No
Breaking capacity 5 A/120 VAC, 28 VDC
Design vertical
contact surface silver-plated
Shift position (On)-Off-(On)
Type of mounting central Mounting
Logistics
Property Value
Country of origin JP
Customs tariff number 85365080
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
