3-1825136-5 | Alcoswitch

Toggle switch, metal, 1 pole, latching, On-On, 5 A/120 VAC, 28 VDC, silver-plated, 3-1825136-5

Order No.: 19G1780
EAN: 4099889181500
MPN:
3-1825136-5
A101SD9AV2Q04
Series: Gemini A

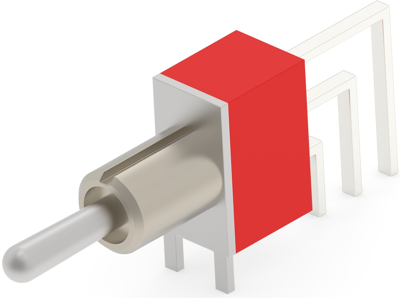

3-1825136-5 Alcoswitch Toggle Switches Image 1

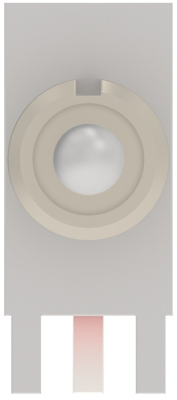

3-1825136-5 Alcoswitch Toggle Switches Image 2

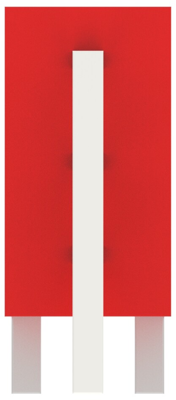

3-1825136-5 Alcoswitch Toggle Switches Image 3

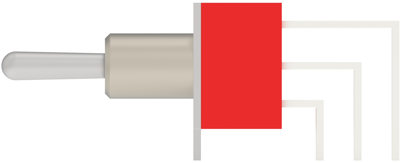

3-1825136-5 Alcoswitch Toggle Switches Image 4

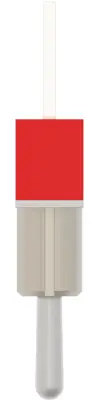

3-1825136-5 Alcoswitch Toggle Switches Image 5
Image may differ
Unit Price (€ / pc.)
3.1535 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
1,576.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
3.1535 €

Toggle Switch, 3-1825136-5, Alcoswitch

Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Baton Long, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Single Pole - Double Throw, Operating Function: On On, Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 28 VDC, Toggle Switch Voltage Rating: 125 VAC, 28 VDC, Toggle Switch Voltage Rating: 120 VAC, Actuator Finish: Nickel, Toggle Switch Seal Type: Terminal Seal (Epoxy), Bushing Style: Unthreaded, Contact Base Material: Copper, Switch Contact Plating Material: Silver, Toggle Switch Contact Current Rating: 5 A, Termination Type: Vertical Right Angle, Toggle Switch Mounting Type: Through Hole, Process Sealed: No, Toggle Length: 12.19 mm, UL Flammability Rating: UL 94V-1

Technical specifications
Filter Property Value
Connection PCB connection
Actuator colour metal
Latching switching function latching
Pin number 1 pole
Type of mounting central Mounting
Design horizontal
illuminated No
Shift position On-On
contact surface silver-plated
Breaking capacity 5 A/120 VAC, 28 VDC
Logistics
Property Value
Country of origin CN
Customs tariff number 85365080
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
