3-1437561-8 | Alcoswitch
Toggle switch, metal, 1 pole, latching, On-On, 0.4 VA/20 V AC/DC, gold plated/nickel plated, 3-1437561-8
Order No.: 71P7415
EAN: 4099891609665
MPN:
3-1437561-8
Unit Price (€ / pc.)
12.5902 € *
Available: 0 pcs.
Available in 5 Days: 20 pcs.
Leadtime: 61 Weeks **

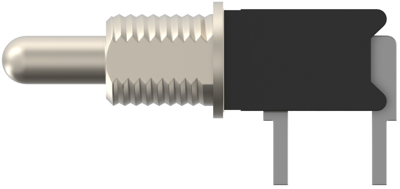

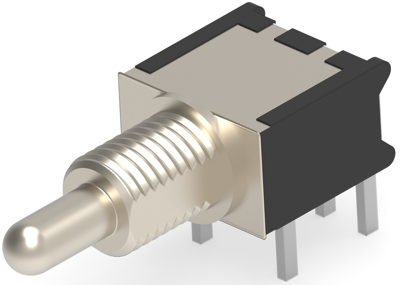

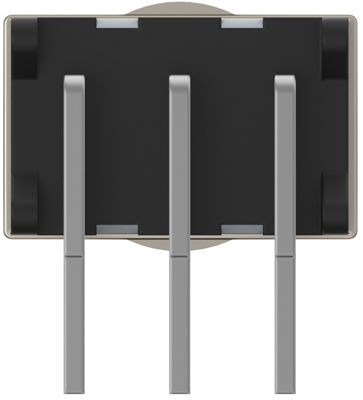

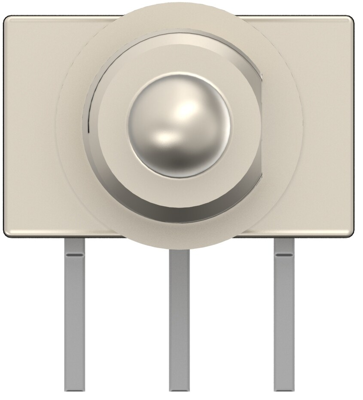

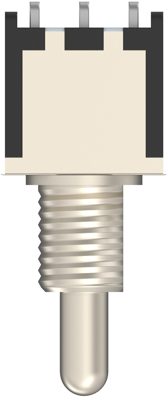

Toggle switch, 3-1437561-8, Alcoswitch
Toggle switch, Single pole - Double throw configuration (Pole-Throw), Sealed, Gold, Gold over Nickel, Terminal seal (Epoxy), Baton short, On None On.
Technical specifications
| Latching switching function | latching | |
| Pin number | 1 pole | |
| Shift position | On-On | |
| Actuator colour | metal | |
| illuminated | No | |
| Connection | PCB pin | |
| Design | horizontal | |
| contact surface | gold plated/nickel plated | |
| Type of mounting | PCB mounting | |
| Breaking capacity | 0.4 VA/20 V AC/DC | |
| Protection class | IP67 |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85365080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
