2-1825143-6 | Alcoswitch
Toggle switch, 2 pole, latching, On-On-On, 0.4 VA/20 V AC/DC, gold-plated

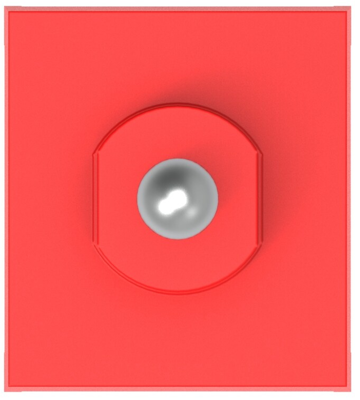

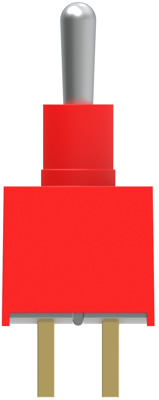

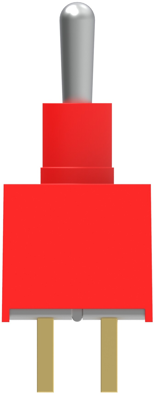

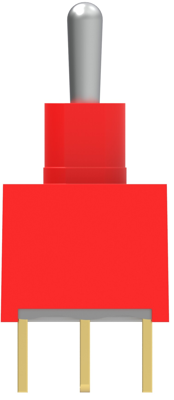

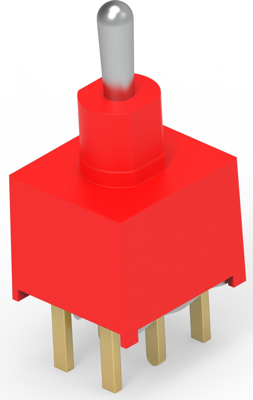

Images may differ
Unit Price (€ / pc.)
6.1166 € *
Available: 0 pcs.
Available in 5 Days: 2,431 pcs.
Leadtime: 5 Days **
Add to Cart
Total Price:
6.12 € *
Quantity
Price per unit*
15 pcs.
6.1166 €
75 pcs.
5.4264 €
150 pcs.
5.1884 €
300 pcs.
5.0932 €
500 pcs.
4.9147 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Toggle switch, 2-1825143-6, Alcoswitch
The 2-1825143-6 is epoxy sealed to prevent the entry of flux, solvent and other contaminants. This product has stainless steel frame with brass tin plated solder suppor.
Features
- Hardware included
Applications
- Industrial equipment
- Audio-visual equipment
- Outdoor concert and lighting equipment
- Medical
- Instrumentation
- Communication equipment
Technical specifications
| Connection | PCB pin | |
| Design | vertical | |
| Type of mounting | central Mounting | |
| illuminated | No | |
| Actuator colour | metal | |
| contact surface | gold-plated | |
| Pin number | 2 pole | |
| Latching switching function | latching | |
| Breaking capacity | 0.4 VA/20 V AC/DC | |
| Shift position | On-On-On | |
| Protection class | IP67 |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
