2-1825138-2 | Alcoswitch

Toggle switch, metal, 2 pole, latching, On-On, 0.4 VA/20 V AC/DC, gold-plated, 2-1825138-2

Order No.: 19G1846
EAN: 4099889182118
MPN:
2-1825138-2
A201SYAB04
Series: Gemini A

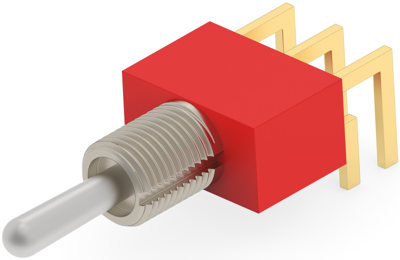

2-1825138-2 Alcoswitch Toggle Switches Image 1

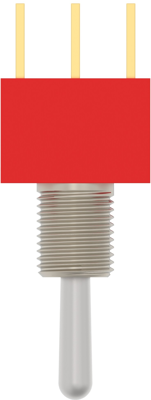

2-1825138-2 Alcoswitch Toggle Switches Image 2

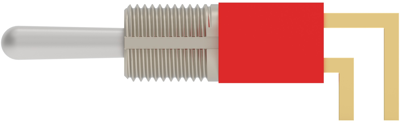

2-1825138-2 Alcoswitch Toggle Switches Image 3

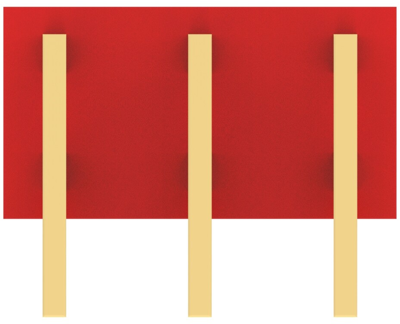

2-1825138-2 Alcoswitch Toggle Switches Image 4

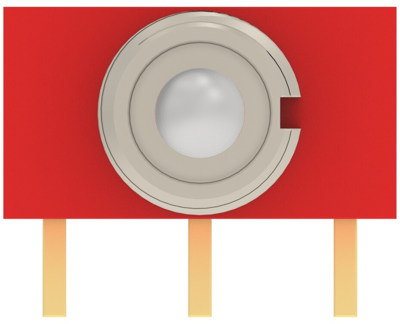

2-1825138-2 Alcoswitch Toggle Switches Image 5
Image may differ
Unit Price (€ / pc.)
4.0817 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
2,040.85 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
4.0817 €

Toggle Switch, 2-1825138-2, Alcoswitch

Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Baton Long, Toggle Switch Type: Toggle, Toggle Actuation: Horizontal, Configuration (Pole-Throw): Double Pole - Double Throw, Operating Function: On On, Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 20 VDC, Toggle Switch Voltage Rating: 20 V, Toggle Switch Voltage Rating: 20 VAC, Actuator Finish: Nickel, Bushing Thread Size: 1/4-40, Toggle Switch Seal Type: Terminal Seal (Epoxy), Bushing Style: Threaded, Contact Base Material: Copper, Switch Contact Plating Material: Gold, Toggle Switch Contact Current Rating: .4 A, Termination Type: Right Angle, Toggle Switch Mounting Type: Through Hole, Process Sealed: No, Toggle Length: 10.4 mm

Technical specifications
Filter Property Value
Actuator colour metal
Pin number 2 pole
Connection PCB connection
Latching switching function latching
illuminated No
Breaking capacity 0.4 VA/20 V AC/DC
Design horizontal
contact surface gold-plated
Shift position On-On
Type of mounting central Mounting
Logistics
Property Value
Country of origin DE
Customs tariff number 85365080
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
