2-1825137-0 | Alcoswitch
Toggle switch, 2-1825137-0

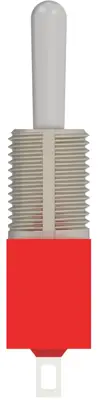

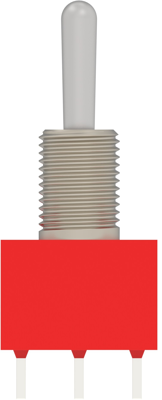

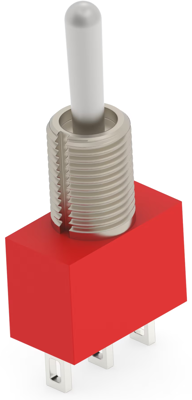

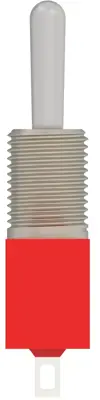

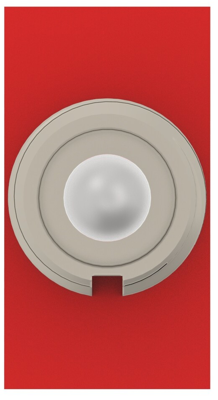

Images may differ
Unit Price (€ / pc.)
2.8441 € *
Available: 0 pcs.
Available in 5 Days: 1,703 pcs.
Leadtime: 5 Days **
Add to Cart
Total Price:
2.84 € *
Quantity
Price per unit*
35 pcs.
2.8441 €
200 pcs.
2.4633 €
350 pcs.
2.4276 €
650 pcs.
2.3800 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Toggle switch, 2-1825137-0, Alcoswitch
The 2-1825137-0 is epoxy sealed to prevent the entry of flux, solvent and other contaminants. This product has stainless steel frame with brass tin plated solder suppor.
Features
- Hardware included
Applications
- Industrial equipment
- Audio-visual equipment
- Outdoor concert and lighting equipment
- Medical
- Instrumentation
- Communication equipment
Technical specifications
| Connection | solder lug | |
| Design | vertical | |
| Type of mounting | Panel mounting | |
| illuminated | No | |
| Actuator colour | metal | |
| contact surface | silver-plated | |
| Pin number | 1 pole | |
| Latching switching function | latching | |
| Breaking capacity | 5 A/125 VAC, 28 VDC | |
| Shift position | On-Off-On | |
| Protection class | IP67 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
