2-1437558-0 | Alcoswitch

Toggle switch, metal, 2 pole, latching, On-On, 6 A/125 VAC, 4 A/28 VDC, gold-plated, 2-1437558-0

Order No.: 19G1914
EAN: 4099889182774
MPN:
2-1437558-0
MTA206N
Series: MTA
Alcoswitch

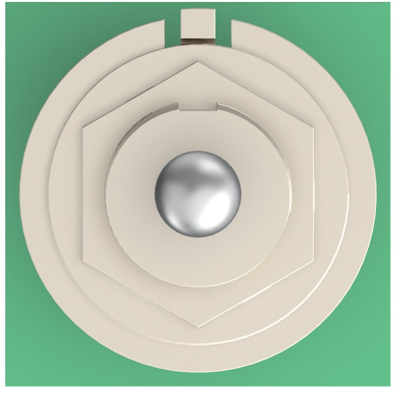

2-1437558-0 Alcoswitch Toggle Switches Image 1

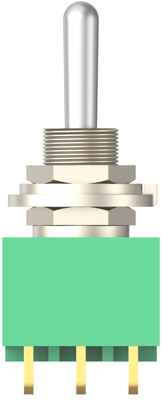

2-1437558-0 Alcoswitch Toggle Switches Image 2

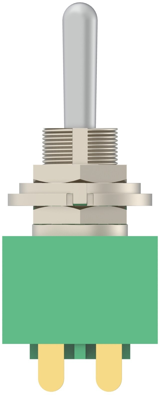

2-1437558-0 Alcoswitch Toggle Switches Image 3

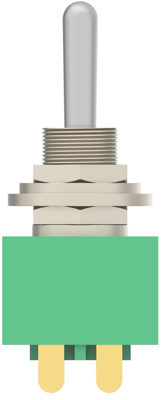

2-1437558-0 Alcoswitch Toggle Switches Image 4
2-1437558-0 Alcoswitch Toggle Switches Image 5
Image may differ
Print
Key Specification:
Latching switching function latching
Pin number 2 pole
Shift position On-On
Actuator colour metal
illuminated No

Ordering Information:

not to be sold to private customers
Download Datasheet Technical specifications
Unit Price (€ / pc.)
17.0527 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
17.05 € *
Price list
Quantity
Price per unit*
1 pcs.
17.0527 €
10 pcs.
15.6961 €
50 pcs.
14.1253 €
100 pcs.
12.7092 €
*incl. VAT plus shipping costs
Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance

Toggle Switch, 2-1437558-0, Alcoswitch

Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Baton Long, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Double Pole - Double Throw, Operating Function: On None On, Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 28 VDC, Toggle Switch Voltage Rating: 125 VAC, Toggle Switch Voltage Rating: 125 VAC, Actuator Finish: Chrome, Bushing Thread Size: 1/4-40, Toggle Switch Seal Type: Terminal Seal (Insert Molded), Bushing Style: Threaded, Contact Base Material: Copper Alloy, Switch Contact Plating Material: Gold Flash over Silver, Toggle Switch Contact Current Rating: 6 A, Termination Type: Vertical,Wire Lugs, Toggle Switch Mounting Type: Panel, Process Sealed: No, Toggle Length: 10.49 mm, UL Flammability Rating: UL 94V-0, Comment: UL available when ordering - consult factory.
Technical specifications
Breaking capacity 6 A/125 VAC, 4 A/28 VDC
illuminated No
Connection solder connection
Actuator colour metal
Shift position On-On
contact surface gold-plated
Pin number 2 pole
Design vertical
Type of mounting central Mounting
Latching switching function latching
Articles of same specification 0
Logistics
Country of origin CN
Customs tariff number 85365080
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description 1,6,7,8,9,14,15,16,17,17,18,18-dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene ("Dechlorane Plus"™), lead
RoHS conform Yes
