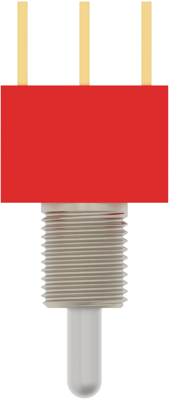

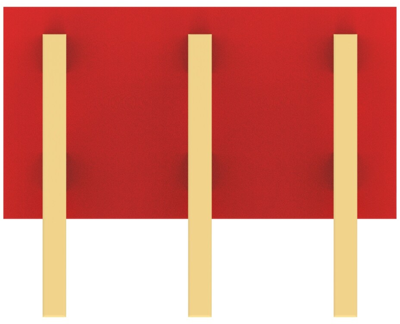

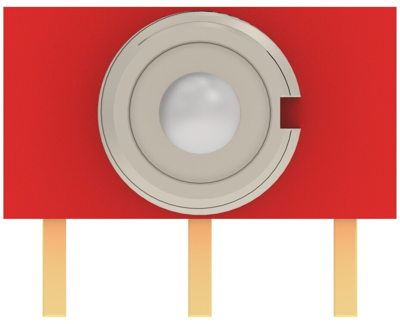

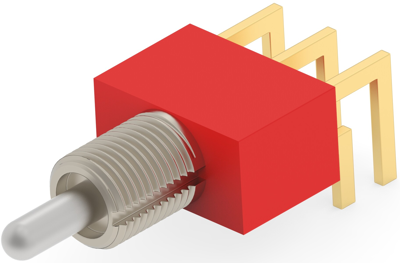

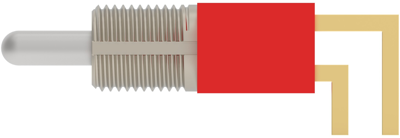

1825138-6 | Alcoswitch
Toggle switch, metal, 2 pole, latching, On-On, 0.4 VA/20 V AC/DC, gold-plated, 1825138-6
Unit Price (€ / pc.)
2.9393 € *
Available: 21 pcs.
Leadtime: 3 Weeks **
Toggle Switch, 1825138-6, Alcoswitch
Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Baton Short, Toggle Switch Type: Toggle, Toggle Actuation: Horizontal, Configuration (Pole-Throw): Double Pole - Double Throw, Operating Function: On On, Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 20 VDC, Toggle Switch Voltage Rating: 20 V, Toggle Switch Voltage Rating: 20 VAC, Actuator Finish: Nickel, Bushing Thread Size: 1/4-40, Toggle Switch Seal Type: Terminal Seal (Epoxy), Bushing Style: Unthreaded, Contact Base Material: Copper, Switch Contact Plating Material: Gold, Toggle Switch Contact Current Rating: .4 A, Termination Type: Right Angle, Toggle Switch Mounting Type: Through Hole, Process Sealed: No, Toggle Length: 6.86 mm, UL Flammability Rating: UL 94V-1
Technical specifications
| Connection | PCB connection | |
| Design | vertical | |
| Type of mounting | central Mounting | |
| illuminated | No | |
| Actuator colour | metal | |
| contact surface | gold-plated | |
| Pin number | 2 pole | |
| Latching switching function | latching | |
| Breaking capacity | 0.4 VA/20 V AC/DC | |
| Shift position | On-On |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
