1825138-3 | Alcoswitch

Toggle switch, metal, 2 pole, latching, On-On, 5 A/125 VAC, 28 VDC, silver-plated, 1825138-3

Order No.: 19G1835
EAN: 4099889182019
MPN:
1825138-3
A201KZQ04
Series: Gemini A

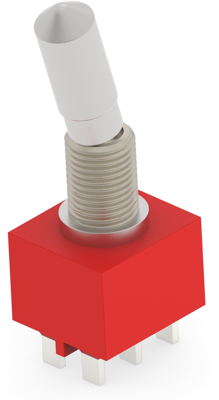

1825138-3 Alcoswitch Toggle Switches Image 1

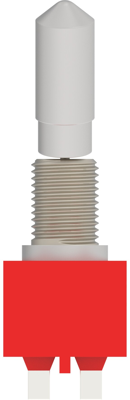

1825138-3 Alcoswitch Toggle Switches Image 2

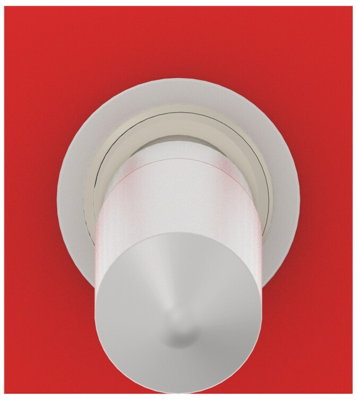

1825138-3 Alcoswitch Toggle Switches Image 3

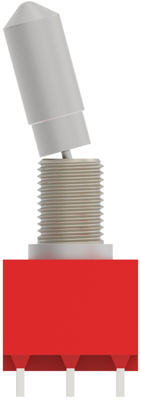

1825138-3 Alcoswitch Toggle Switches Image 4

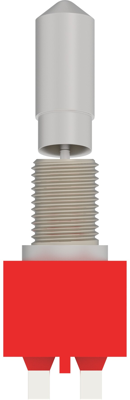

1825138-3 Alcoswitch Toggle Switches Image 5
Image may differ
Unit Price (€ / pc.)
14.4228 € *
Available in 5 Days: 143 pcs. - if ordered today
Total Price:
14.42 € *
Price list
Quantity
Price per unit*
1 pcs.
14.4228 €
10 pcs.
13.3875 €
25 pcs.
12.4950 €
50 pcs.
11.3645 €
*incl. VAT plus shipping costs
Subject to prior sale

Toggle Switch, 1825138-3, Alcoswitch

Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Locking, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Double Pole - Double Throw, Operating Function: On On, Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 28 VDC, Toggle Switch Voltage Rating: 125 VAC, 28 VDC, Toggle Switch Voltage Rating: 120 VAC, Actuator Finish: Nickel, Bushing Thread Size: 1/4-40 UNS-2A, Toggle Switch Seal Type: Terminal Seal (Epoxy), Bushing Style: Unthreaded, Contact Base Material: Copper, Switch Contact Plating Material: Silver, Toggle Switch Contact Current Rating: 5 A, Termination Type: Wire Lugs, Toggle Switch Mounting Type: Solder, Process Sealed: No, Toggle Length: 14.71 mm, UL Flammability Rating: UL 94V-1

Technical specifications
Filter Property Value
Latching switching function latching
Shift position On-On
illuminated No
Breaking capacity 5 A/125 VAC, 28 VDC
Type of mounting central Mounting
Pin number 2 pole
Design vertical
Actuator colour metal
Connection solder connection
contact surface silver-plated
Logistics
Property Value
Customs tariff number 85365080
Country of origin TW
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
SVHC free No
