1-6437630-1 | Alcoswitch

Toggle switch, metal, 2 pole, groping/latching, (On)-Off-(On), 20 A/125 VAC, 30 VDC, silver-plated, 1-6437630-1

Order No.: 19G1727
EAN: 4099889181241
MPN:
1-6437630-1
AWTS1504
Series: AW

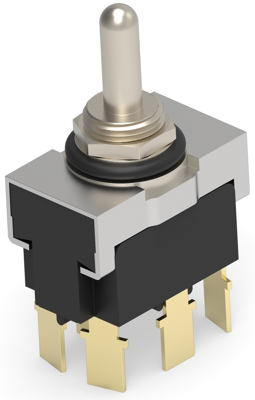

1-6437630-1 Alcoswitch Toggle Switches Image 1

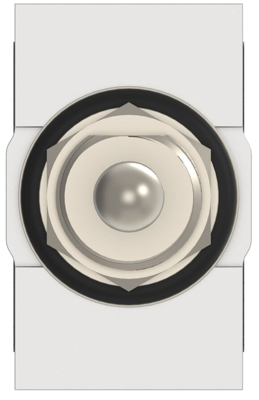

1-6437630-1 Alcoswitch Toggle Switches Image 2

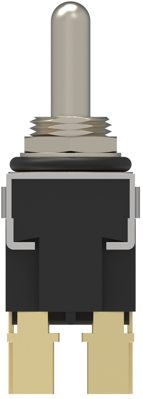

1-6437630-1 Alcoswitch Toggle Switches Image 3

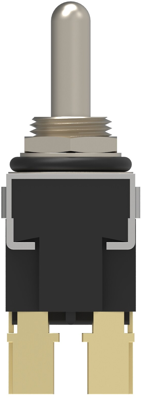

1-6437630-1 Alcoswitch Toggle Switches Image 4
1-6437630-1 Alcoswitch Toggle Switches Image 5
Image may differ
Unit Price (€ / pc.)
41.3406 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
10,335.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
250 pcs.
41.3406 €

Toggle Switches, 1-6437630-1, Alcoswitch

Technical Data

  • Contact Resistance (mΩ): 10
  • Voltage Rating (VAC): 125 - 250
  • Voltage Rating (VDC): 30
  • Insulation Resistance (MΩ): 1000
Technical specifications
Latching switching function groping/latching
Pin number 2 pole
Shift position (On)-Off-(On)
Actuator colour metal
illuminated No
Connection faston plug
Design vertical
contact surface silver-plated
Type of mounting central Mounting
Breaking capacity 20 A/125 VAC, 30 VDC
Protection class IP67
Logistics
Country of origin US
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
