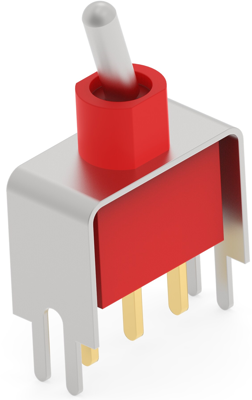

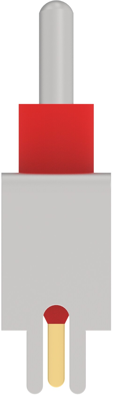

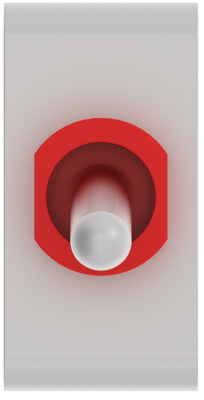

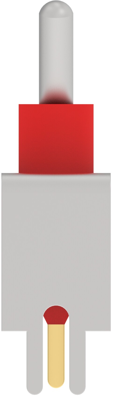

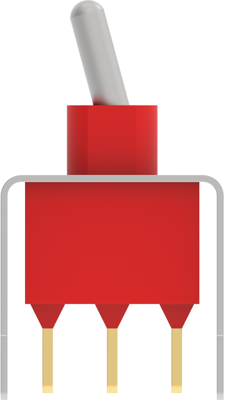

1-1825142-2 | Alcoswitch
Toggle switch, 1 pole, latching, On-On, 5 A/125 VAC, 28 VDC, silver-plated
Images may differ
Unit Price (€ / pc.)
4.2007 € *
Available: 0 pcs.
Available in 5 Days: 400 pcs.
Leadtime: 5 Days **
Add to Cart
Total Price:
4.20 € *
Quantity
Price per unit*
25 pcs.
4.2007 €
150 pcs.
3.6176 €
250 pcs.
3.5581 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Toggle switch, 1-1825142-2, Alcoswitch
The 1-1825142-2 is epoxy sealed to prevent the entry of flux, solvent and other contaminants. This product has stainless steel frame with brass tin plated solder suppor.
Features
- Hardware included
Applications
- Industrial equipment
- Audio-visual equipment
- Outdoor concert and lighting equipment
- Medical
- Instrumentation
- Communication equipment
Technical specifications
| Connection | PCB pin | |
| Design | vertical | |
| Type of mounting | central Mounting | |
| illuminated | No | |
| Actuator colour | metal | |
| contact surface | silver-plated | |
| Pin number | 1 pole | |
| Latching switching function | latching | |
| Breaking capacity | 5 A/125 VAC, 28 VDC | |
| Shift position | On-On | |
| Protection class | IP67 |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
